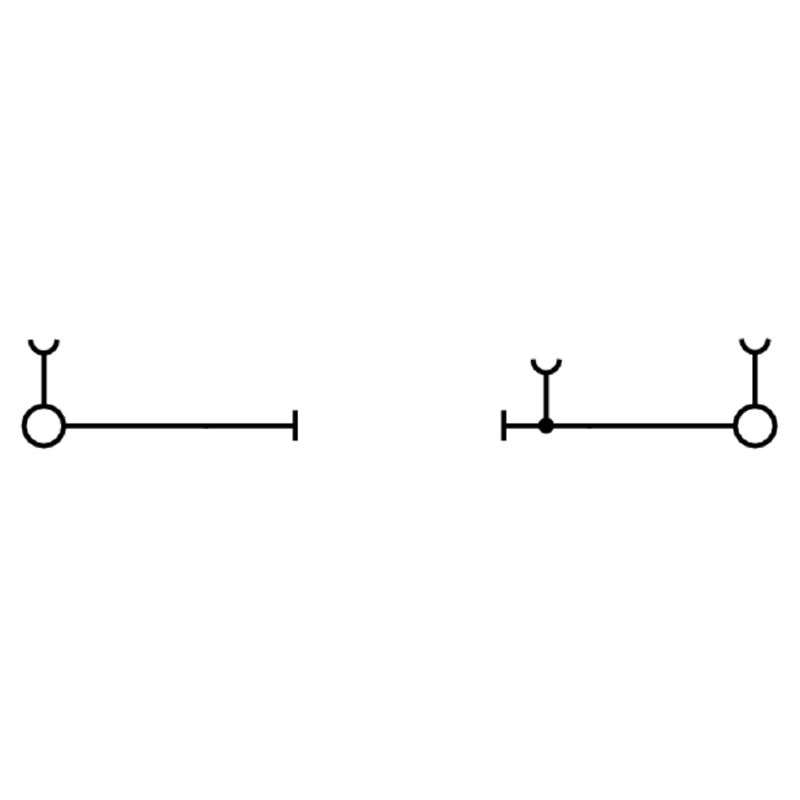

Skille/Måleklemme beige WTR 2,5 U STB 2,3
Product number
1209308
WTR 2.5/O. TNHE STB2.3 Skille/Måleklemme, Merketverrsnitt: 2.5 mm², Tilkoblingstype: Skru tilkobling, Isolasjonsmateriale: Wemid, Farge på Isolasjonsmateriale: Beige, Installasjon: TS 35, Uten skillekniv for montasje av komponent eller sikringsholder. Med målebøssing
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 ... 2.5 mm²
Connectable conductor cross section solid-core0.5 ... 4 mm²
Connectable conductor cross section multi-wired1.5 ... 4 mm²
Rated current In24 A
Rated voltage500 V
Type of electrical connection 1Screw connection
Number of levels1
Number of clamp positions per level2
Internally connected stagesfalse
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Inflammability class of insulation material according to with UL94V0
Operating temperature-50 ... 120 °C
Closing plate requiredtrue
Product codes
SAPGBI467
PLC1209308
STK1209308
GTIN/EAN4032248404858
Manufacturer part number3322873167
Vendor material number8731670000
Basic information
Package measurements (L x W x H)0.11 x 0.319 x 0.05 mm
Package volume1.755 l
Package weight0.809 kg
Base uniteach
Package units100
Usage quantity1
UNSPSC39131410
BrandWEIDMÜLLER
