REKKEKLEMME S2C 2.5
Product number
1202259

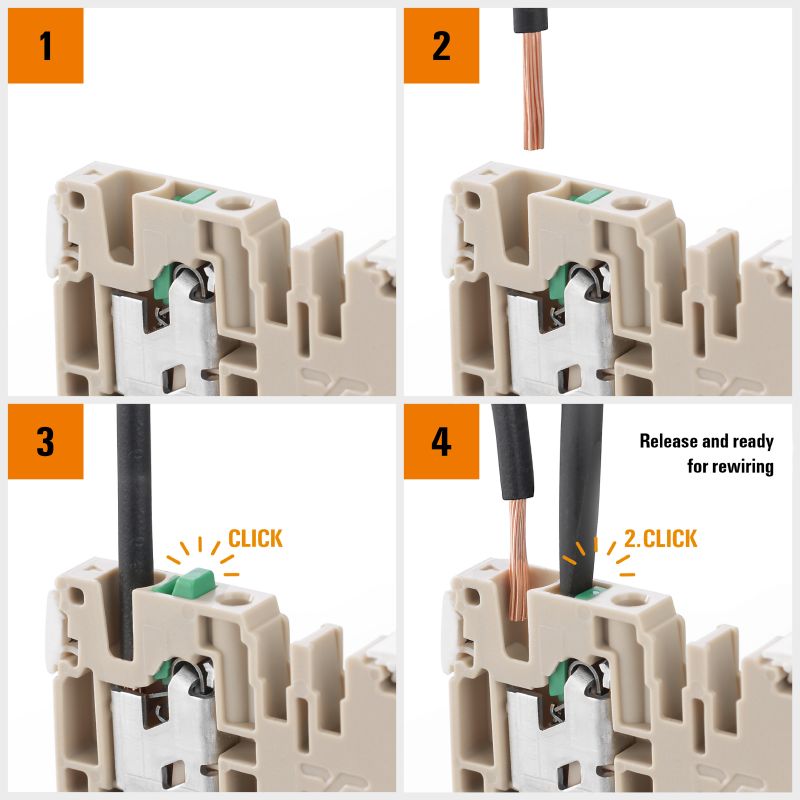

Terminal, SNAP IN, 2.5 mm²
Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 ... 2.5 mm²
Connectable conductor cross section solid-core0.5 ... 2.5 mm²
Connectable conductor cross section multi-wired0.5 ... 2.5 mm²
Rated current In24 A
Rated voltage800 V
Type of electrical connection 1Other
Type of electrical connection 2Other
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialCopper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature0 ... 130 °C
Inflammability class of insulation material according to with UL94V0
Product codes
SAPDFJ742
PLC1202259
STK1202259
GTIN/EAN4064675266389
Manufacturer part number2674530000
Vendor material number2674530000
Basic information
Package measurements (L x W x H)38 x 5.1 x 59 mm
Package volume0.011 l
Package weight0.084 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandWEIDMÜLLER
