REKKEKLEMME S2C 2.5 PE

Product number
1209088

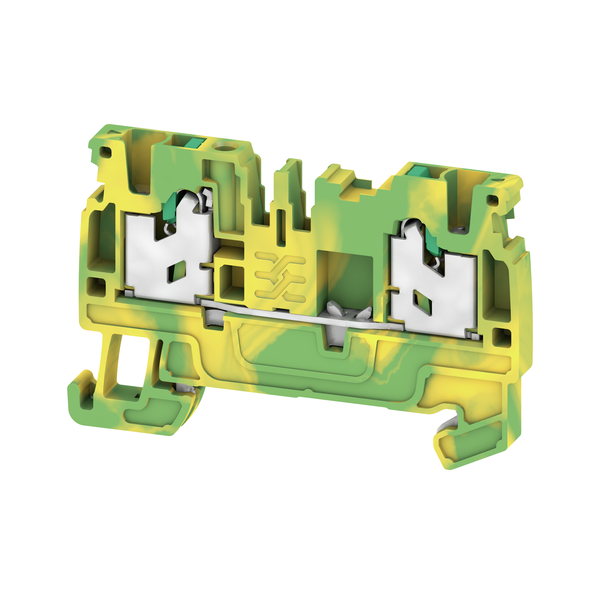

Terminal, SNAP IN, 2.5 mm²

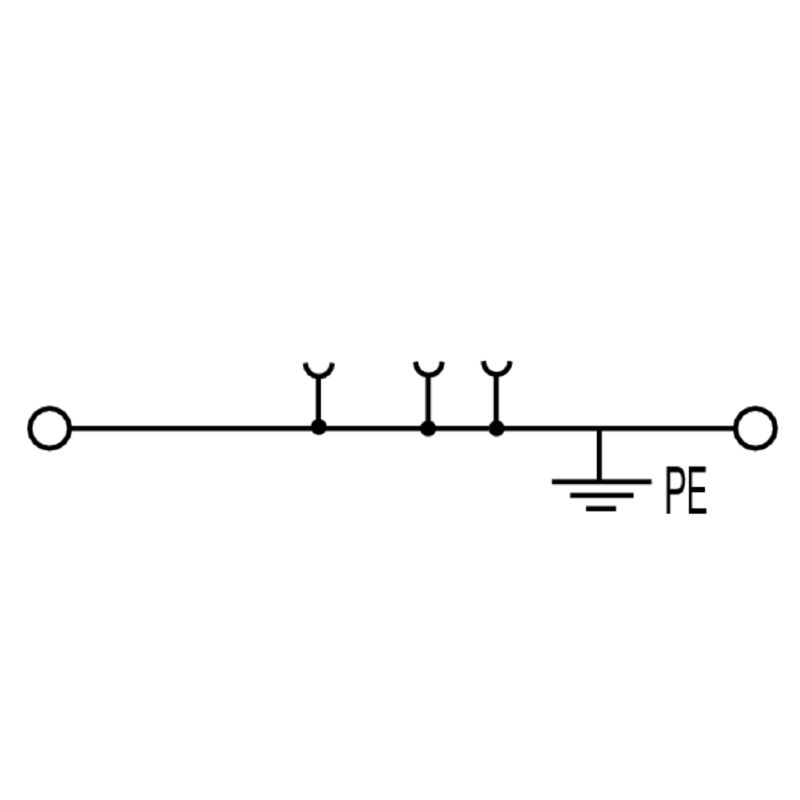

Terminal block for connecting protective earth conductors to the mounting base (earth). Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.

Product details

Technical specifications

PEN function possiblefalse
Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 ... 2.5 mm²
Connectable conductor cross section solid-core0.5 ... 2.5 mm²
Connectable conductor cross section multi-wired0.5 ... 2.5 mm²
Type of electrical connection 1Other
Type of electrical connection 2Other
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature0 ... 130 °C
Inflammability class of insulation material according to with UL94V0
Width5.1 mm
Height59 mm

Product codes

SAPDFL259
PLC1209088
STK1209088
GTIN/EAN4064675266419
Manufacturer part number2674560000
Vendor material number2674560000

Basic information

Package measurements (L x W x H)5 x 8 x 20 mm
Package volume0.001 l
Package weight0.011 kg
Base uniteach
Package units1
Usage quantity
UNSPSC32000000
BrandWEIDMÜLLER
