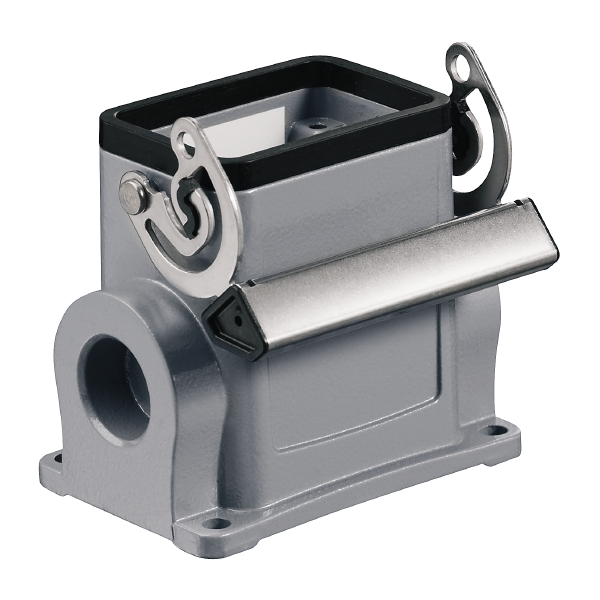

HDC KAPSLING PÅVEGGG, STR: 3, IP65, LANGSGÅENDE LÅS
Product number
1572252
HDC KAPSLING PÅVEGGG, STR: 3,
Kapsling for maskinkontakter, Størrelse: 3, Kapslingsgrad: IP 65 / IP 66, Kapslingstype: Påveggskapsling, Type låsebøyle: langsgående, Design: standard
Product details
Technical specifications
Width71.7 mm
Height54 mm
Type of housingSocket case
Housing materialAluminium
Coating housingPowder coating
Housing colourGrey
Material adapter plateAluminium
Position cable feedOther
Position of the shackleBase unit
With cable screw glandfalse
Mounting method of the cable glandMetric
With sealingtrue
Number of conduit inlets1
Locking mechanismSingle locking lever
Operating temperature0 ... 125 °C
Product codes
SAPDCH992
PLC1572252
STK1572252
GTIN/EAN4032248585939
Manufacturer part number1900460000
Vendor material number1900460000
Basic information
Package measurements (L x W x H)84 x 69 x 65 mm
Package volume0.377 l
Package weight0.232 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121522
BrandWEIDMÜLLER
