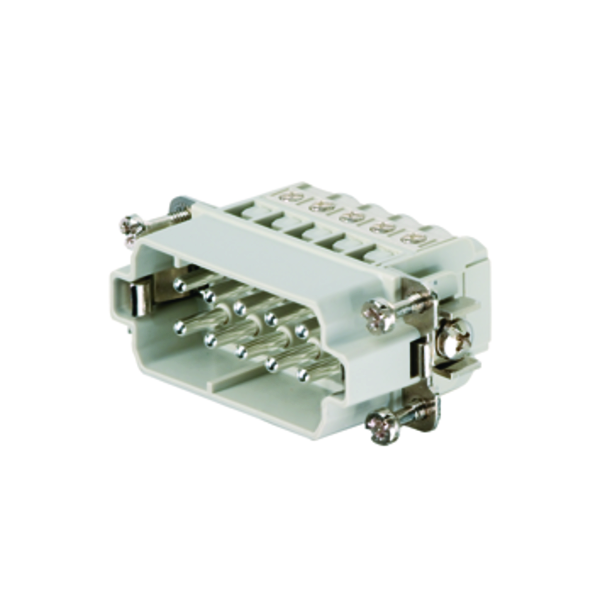

HDC INNSATS, HANN, 250 V, 22 A, 10 + PE, SKRU, STR: 2
Product number
1542892
HDC INNSATS, HANN, 250 V, 22
RockStar, HDC innsats, Type: Hann, Nominell spenning (DIN EN 61984): 250 V, Nominell strøm (DIN EN 61984): 22 A, Antall poler: 10 + PE, Type tilkobling: skrue tilkobling, Str: 2
Product details
Technical specifications
Contact insert without contactsfalse
Contact typePin
Number of poles10
Material connector insertThermoplastic
Rated current In16 A
Operating temperature−40 ... 125 °C
Rated voltage250 V
Rated surge voltage4 kV
Pollution degree3
Type of electric connectionScrew connection
With wire protectiontrue
Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 ... 2.5 mm²
Connectable conductor cross section solid-core0.5 ... 2.5 mm²
Connectable conductor cross section multi-wired0.5 ... 2.5 mm²
Product codes
SAPDCH987
PLC1542892
STK1542892
GTIN/EAN4008190299286
Manufacturer part number1650610000
Vendor material number1650610000
Basic information
Package measurements (L x W x H)57 x 35 x 24 mm
Package volume0.048 l
Package weight0.049 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121522
BrandWEIDMÜLLER
