New

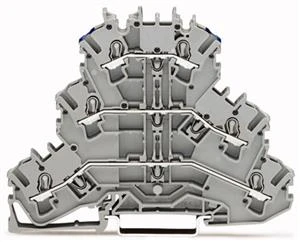

TOPJOB S 3ETG.L/L/N 2,5MM2 GRÅ 2002-3203
Product number
1208379
TOPJOB S 3ETG.L/L/N 2,5MM2 GRÅ
Rekkeklemme 3 etg. L/L/N
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.25 ... 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.75 ... 2.5 mm²
Connectable conductor cross section solid-core0.75 ... 4 mm²
Connectable conductor cross section multi-wired0.25 ... 2.5 mm²
Rated current In24 A
Rated voltage500 V
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Spring clamp connection
Number of levels3
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature105 ... 105 °C
Inflammability class of insulation material according to with UL94V0
Width5.2 mm
Product codes
SAPHDI344
PLC1208379
STK1208379
GTIN/EAN4044918691192
Manufacturer part number2002-3203
Vendor material number2002-3203
Basic information
Package measurements (L x W x H)92 x 73 x 6 mm
Package volume0.04 l
Package weight0.017 kg
Base uniteach
Package units1 / 50
Usage quantity–
BrandWAGO
