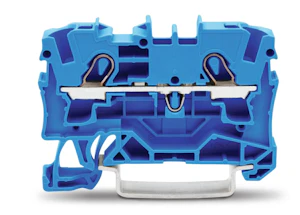

REKKEKLEMME 2 LEDER 4MM2 BLÅ 2004-1204 WAGO
Product number
1208910
Rekklemme 2 leder Blå, 4mm2
Rekklemme 2 leder Blå, 4mm2
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.75 ... 2.5 mm²
Connectable conductor cross section solid-core1.6 ... 1.6 mm²
Connectable conductor cross section multi-wired0.5 ... 4 mm²
Rated current In32 A
Rated voltage800 V
Type of electrical connection 1Spring clamp connection
Type of electrical connection 2Spring clamp connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature105 ... 105 °C
Inflammability class of insulation material according to with UL94V0
Width6.2 mm
Product codes
SAPALY265
PLC1208910
STK1208910
GTIN/EAN4017332071086
Manufacturer part number2004-1204
Vendor material number2004-1204
Basic information
Package measurements (L x W x H)52.5 x 33 x 6.2 mm
Package volume0.011 l
Package weight0.007 kg
Base uniteach
Package units50 / 50
Usage quantity–
UNSPSC39121400
BrandWAGO
