TRYKKT.DISP.-1BAR 4-20MA 2 PNP
Product number
4306462

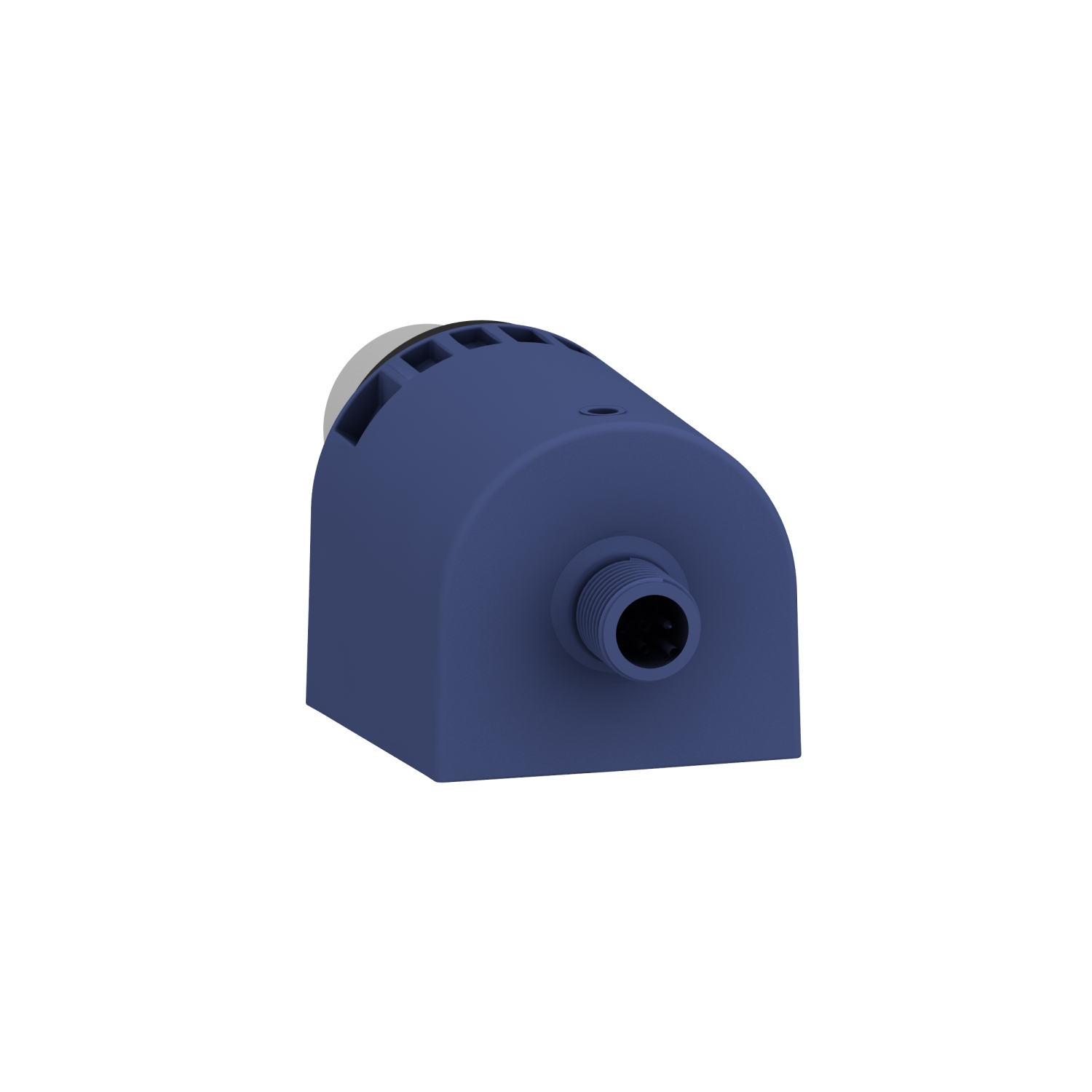

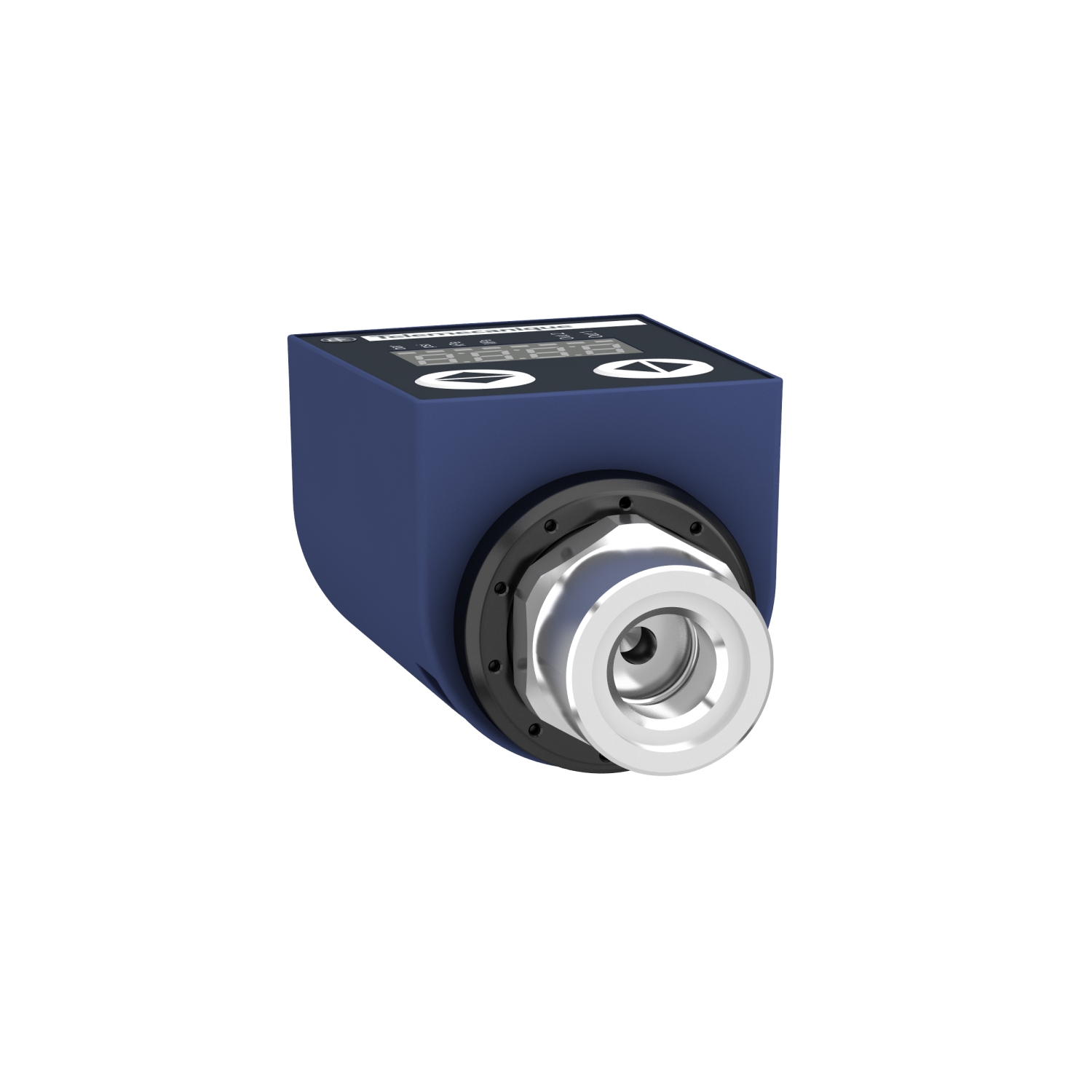

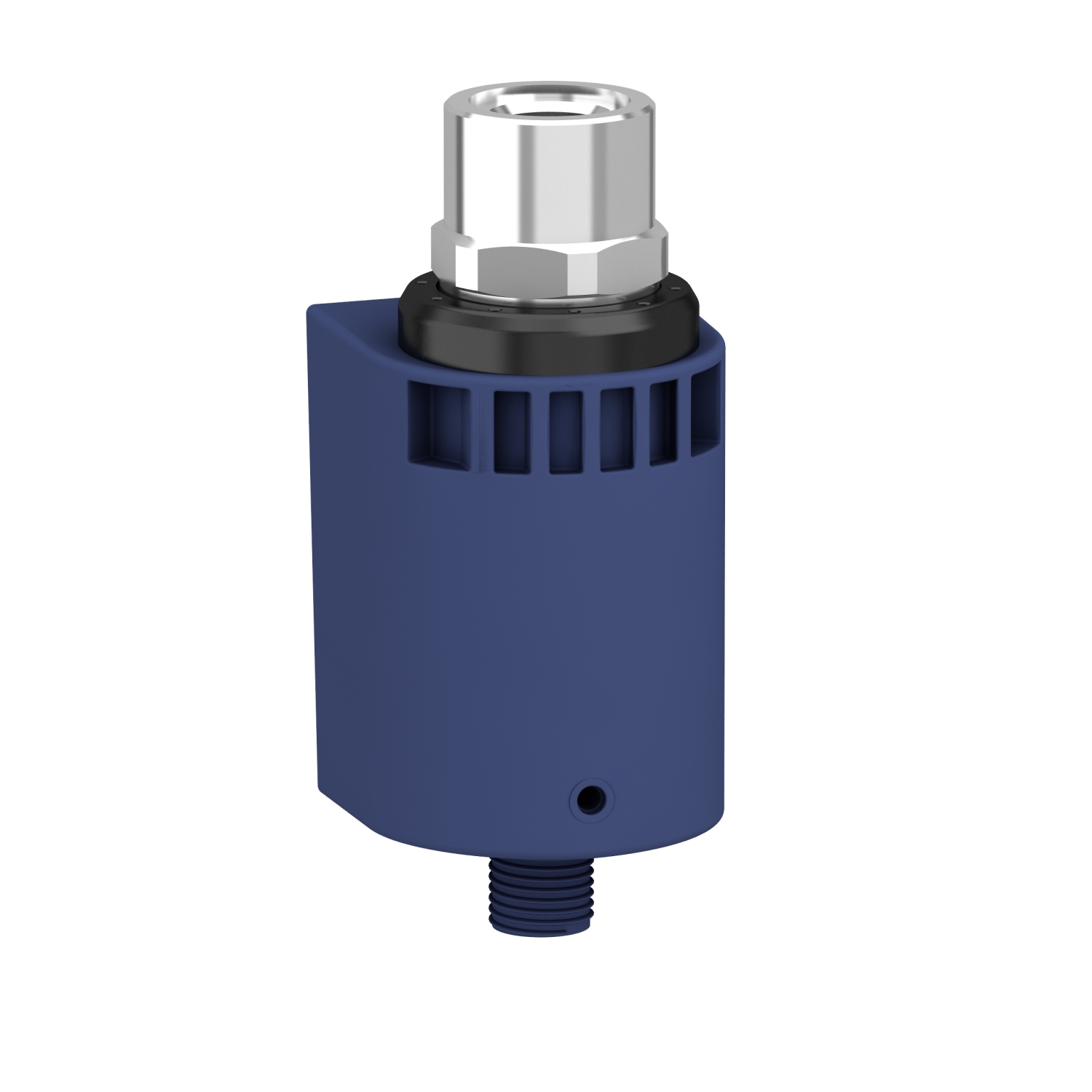

Trykktransmitter vakuumdisplay -1Bar 24V 4-20mA 2 PNP
Trykktransmitter vakuum med display -1Bar 24VDC analog utgang 4-20mA og 2 utgange PNP M12 han og vaesketilslutning G1/4"
Product details
Technical specifications
Suitable as guardtrue
Suitable as 2-point controllerfalse
Suitable as limiterfalse
Engaging pressure0 ... 0.05 bar
Initial setting0 ... -1000 hPa
Switch off pressure-0.08 ... -1 bar
End setting0 ... -1000 hPa
Pressure-switching differential0.03 bar
Max. test pressure3 bar
Bursting pressure3 bar
Medium temperature0 ... 80 °C
Thread sizeOther
Rated voltage Ue at DC24 ... 24 V
Initial value measuring range pressure-5000 Pa
End value measuring range pressure-100000 Pa
Product codes
SAPCCL661
PLC4306462
STK4306462
GTIN/EAN3389119609876
Manufacturer part numberXMLRM01G2P25
Vendor material numberXMLRM01G2P25
Basic information
Package measurements (L x W x H)75 x 127 x 65 mm
Package volume0.619 l
Package weight0.181 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC41112410
BrandTELEMECANIQUE
