New

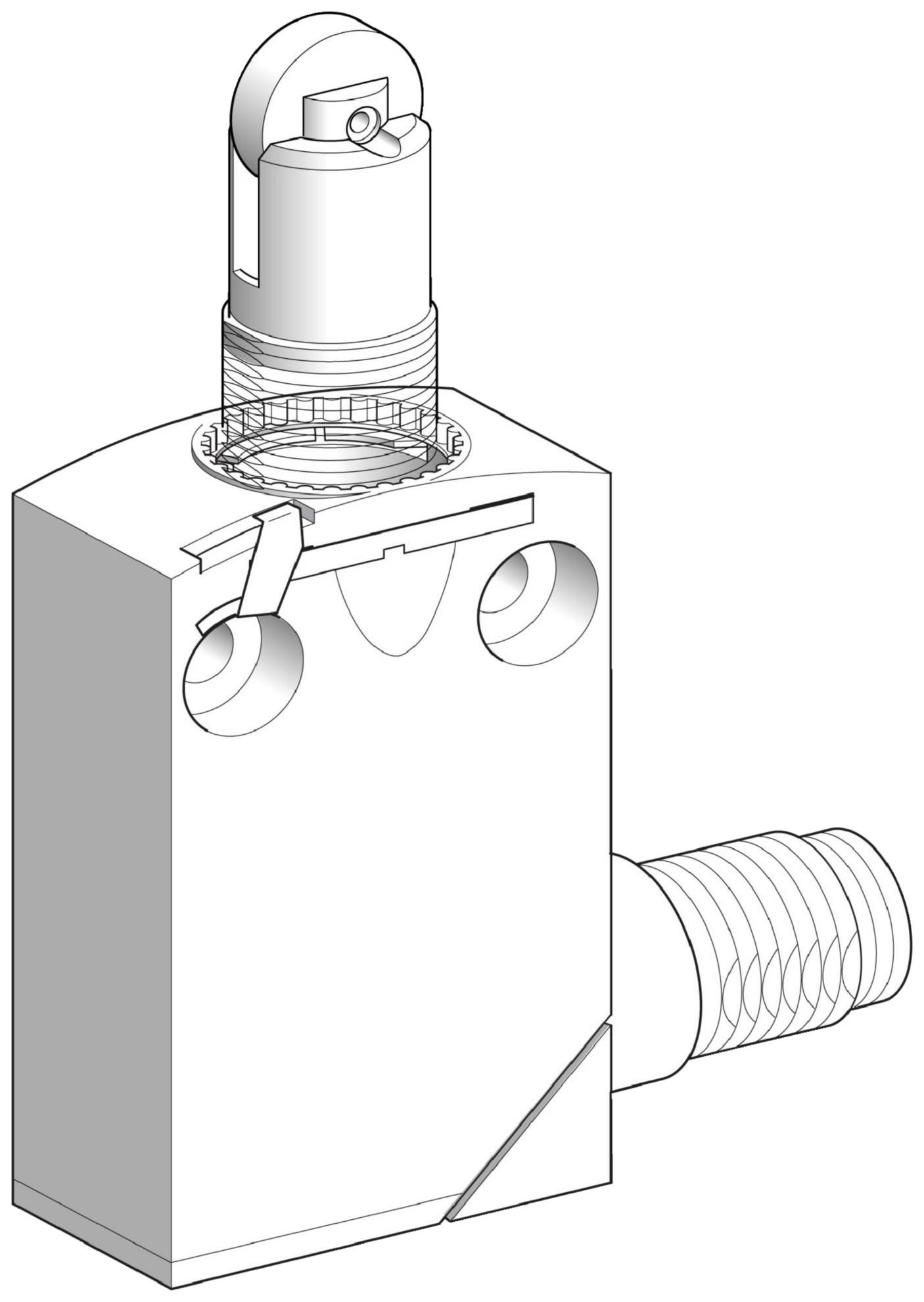

ENDEBRYTER M12 STEMP/RUL M12 XCMD21F2M12
Product number
4394108
Endebryter M12 stempel arm med rulle M12
Endebryter plast med res 1NO+NC M20,M12 plugg
Product details
Technical specifications
Width sensor30 mm
Diameter sensor0 mm
Height of sensor50 mm
Length of sensor16 mm
Rated operation current Ie at AC-15, 24 V0 A
Rated operation current Ie at AC-15, 125 V0 A
Rated operation current Ie at AC-15, 230 V1.5 A
Rated operation current Ie at DC-13, 24 V0 A
Rated operation current Ie at DC-13, 125 V0 A
Rated operation current Ie at DC-13, 230 V0.1 A
Switching functionQuick-break switch
Switching function latchingfalse
Output electronicfalse
Forced openingfalse
Number of safety auxiliary contacts0
Product codes
SAPGCN236
PLC4394108
STK4394108
GTIN/EAN3389110221572
Manufacturer part numberXCMD21F2M12
Vendor material numberXCMD21F2M12
Basic information
Package measurements (L x W x H)53 x 88 x 18 mm
Package volume0.084 l
Package weight0.114 kg
Base uniteach
Package units1 / 70
Usage quantity–
UNSPSC39121500
BrandTELEMECANIQUE
