ARM M+Ø50PLASTHJ.NO+NC.M20 XCKS139H29
Product number
4350569
Endebryter arm m/Ø50plasthj.no/nc.M21

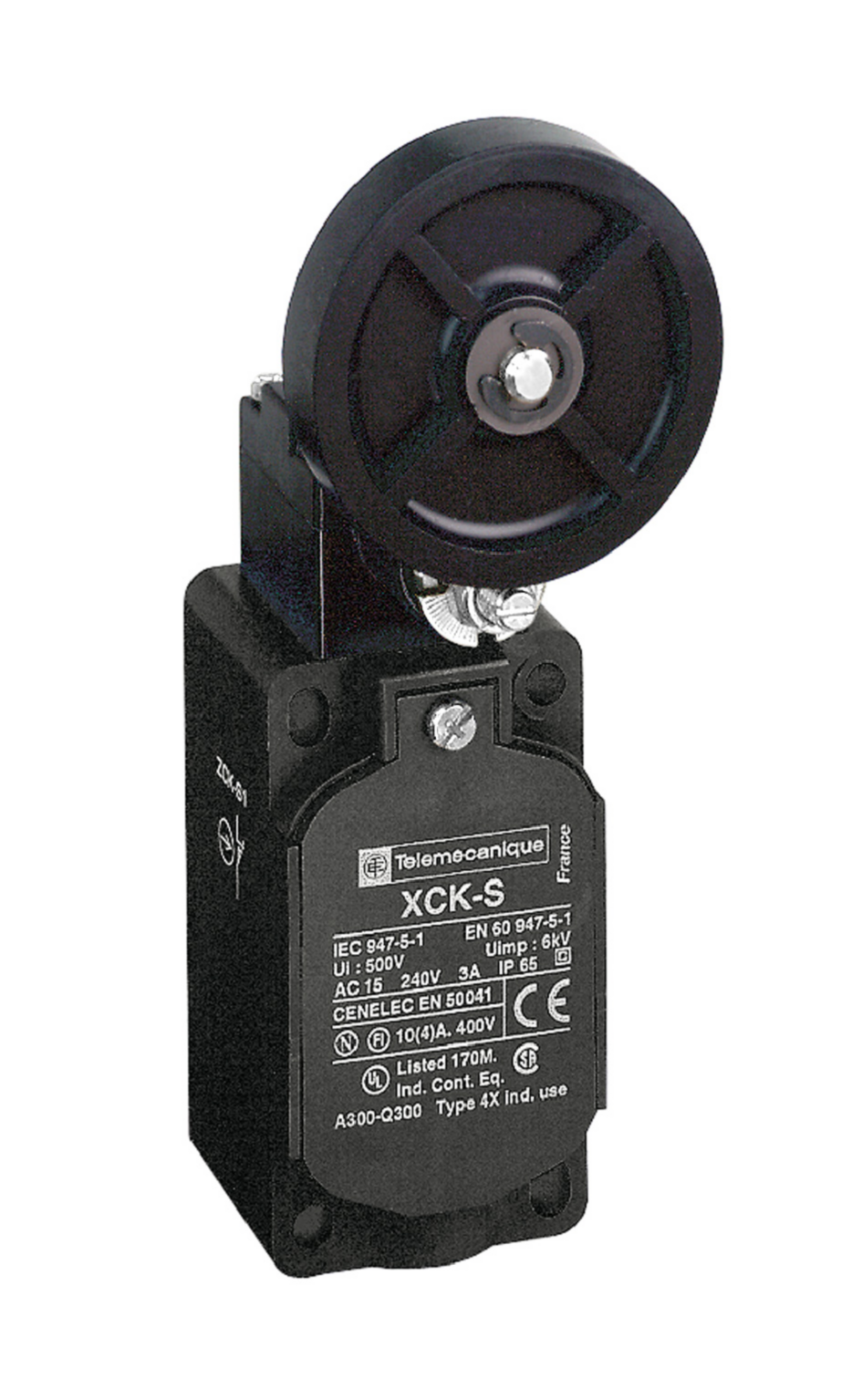

Endebryter arm med Ø50mm plasthjul NC+NO kabelinngang M20
Product details
Technical specifications
Width sensor50 mm
Diameter sensor0 mm
Height of sensor143 mm
Length of sensor65 mm
Rated operation current Ie at AC-15, 24 V0 A
Rated operation current Ie at AC-15, 125 V0 A
Rated operation current Ie at AC-15, 230 V3 A
Rated operation current Ie at DC-13, 24 V0 A
Rated operation current Ie at DC-13, 125 V0 A
Rated operation current Ie at DC-13, 230 V0.27 A
Switching functionQuick-break switch
Switching function latchingfalse
Output electronicfalse
Forced openingfalse
Number of safety auxiliary contacts0
Product codes
SAPGCN189
PLC4350569
STK4350569
GTIN/EAN3389110612370
Manufacturer part numberXCKS139H29
Vendor material numberXCKS139H29
Basic information
Package measurements (L x W x H)90 x 150 x 54 mm
Package volume0.729 l
Package weight0.179 kg
Base uniteach
Package units1 / 12 / 48
Usage quantity1
UNSPSC39122213
BrandTELEMECANIQUE
