CONTACT HARMONY ZB5AZ1045
Product number
4308116

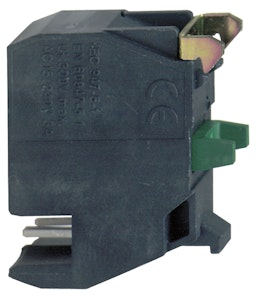

Single contact block with body/fixing collar 2NC spring clamp terminal
Single contact block with body/fixing collar 2NC spring clamp terminal. range of product: Harmony XB5 - product or component type: complete body/contact assembly - device short name: ZB5 - fixing collar material: plastic - contacts type and composition: 2 NC - contacts operation: slow-break - contact block type: single. Benefits: Progress with confidence Designed for industry, this range combines simplicity of setup and flexibility.. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.... Applications: - Industry: machine manufacturers, chemical industry, paper mill, marine applications, Service sector and infrastructure: energy distribution panel builders, food and beverage, car washes..
Product details
Technical specifications
Number of contacts as change-over contact0
Number of contacts as normally open contact0
Number of contacts as normally closed contact2
Number of fault-signal switches0
Rated operation current Ie at AC-15, 230 V3 A
Type of electric connectionSpring clamp connection
ModelIntegrable
Mounting methodOther
Lamp holderNone
Product codes
SAPGBV503
PLC4308116
STK4308116
GTIN/EAN3389119037754
Manufacturer part numberZB5AZ1045
Vendor material numberZB5AZ1045
Basic information
Package measurements (L x W x H)34 x 50 x 40 mm
Package volume0.068 l
Package weight0.029 kg
Base uniteach
Package units1 / 5 / 250
Usage quantity–
UNSPSC39121534
BrandSCHNEIDER
