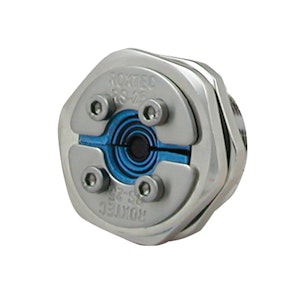

CRST010025046 ROXTEC SEAL M25 C RS T 25 AISI 316/MESSING
Product number
1201955
C RS T 50 AISI 316/messing tetning med gjenget hylse<br>For kabel Ø3,6-12mm
For IP-66/67 Rund tetning for montering i tynnplate For tetting av pre-terminerte kabler Leveres komplett med gjenget hylse, mutter og pakning Materiale - syrefast stål AISI 316/messing
Product details
Technical specifications
Thread typeMetric
Nominal thread size metric/PG32
Nominal thread size inch/gas pipe threadOther
Pitch thread1.5 mm
Thread length16 mm
Wrench width0 mm
Hexagon angular dimension36 mm
Suitable for cable diameter3.6 ... 12 mm
MaterialRubber
Material qualityBrass
Surface protectionNickel-plated
Halogen freetrue
Glass-fibre reinforcedfalse
Degree of protection (IP)IP69K
Shock resistantfalse
Product codes
SAPGBW202
PLC1201955
STK1201955
GTIN/EAN7340016900745
Manufacturer part numberCRST010025046
Vendor material number1201955
Basic information
Package measurements (L x W x H)20 x 0 x 39 mm
Package volume0 l
Package weight0.1 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121312
BrandROXTEC
