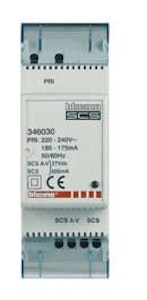

KOMPAKTPOWER MED VIDEOADAPTER 346030 BTICINO
Product number
6300592
Powersupply for mindre bus systemer (opp til 10 leiligheter audio, enebolig video)
Powersupply for mindre bus systemer (opp til 10 leiligheter audio, enebolig video) Tilleggsutstyr for porttelefonsystemer
Product details
Technical specifications
ApplicationVideo
Input voltage230 V
Frequency0.05 ... 0.06 Hz
Type of currentDC
Output voltage27 V
Max. output current600 mA
Short-circuit-prooftrue
Degree of protection (IP)IP20
Width in number of modular spacings2
Height89 mm
Width35 mm
Depth66 mm
Installation techniqueBus system
Integrated door opening circuitfalse
Control functionfalse
Product codes
SAPGBW463
PLC6300592
STK6300592
GTIN/EAN8012199956022
Manufacturer part number346030
Vendor material number346030
Basic information
Package measurements (L x W x H)0.115 x 0.075 x 0.045 mm
Package volume0.388 l
Package weight0.16 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandPHONO
