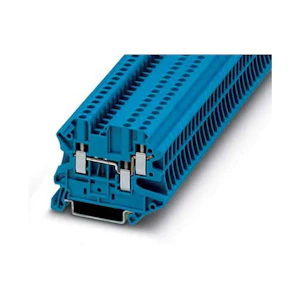

REKL SKRU 3 TILK 0,14-2,5 BLÅ 3044526 PHOENIX CONTACT
Product number
1268259
UT 2,5-TWIN BU
UT 2,5-TWIN BU REKKEKL SKRU 4 TILKB 0,14-2,5
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.14 ... 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.14 ... 2.5 mm²
Connectable conductor cross section solid-core0.14 ... 4 mm²
Connectable conductor cross section multi-wired0.14 ... 1.5 mm²
Rated current In24 A
Rated voltage500 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level3
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyOther
Operating temperature-60 ... 105 °C
Inflammability class of insulation material according to with UL94V0
Explosion-tested version 'Ex e'true
Product codes
SAPGBE362
PLC1268259
STK1268259
GTIN/EAN4046356055413
Manufacturer part number3044526
Vendor material number3044526
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight0.011 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39131410
BrandPHOENIX
