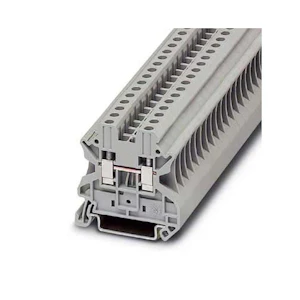

REKKEKL SKRU 0,14-4 3044102 PHOENIX CONTACT

Product number
1266003
UT 4
Gjennomgangsklemme, nominell spenning: 1000 V, nominell strøm: 32 A, tilkoblingstype: Skrutilkobling, antall tilkoblinger: 2, tverrsnitt:0,14 mm² - 6 mm², AWG: 26 - 10, bredde: 6,2 mm, høyde: 46,9 mm, farge: grå, monteringstype: NS 35/7,5, NS 35/15

Product details

Technical specifications

Connectable conductor cross section fine-strand without cable end sleeve0.14 ... 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.14 ... 4 mm²
Connectable conductor cross section solid-core0.14 ... 6 mm²
Connectable conductor cross section multi-wired0.14 ... 1.5 mm²
Rated current In32 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyOther
Operating temperature-60 ... 105 °C
Inflammability class of insulation material according to with UL94V0
Explosion-tested version 'Ex e'true

Product codes

SAPGBE394
PLC1266003
STK1266003
GTIN/EAN4017918960391
Manufacturer part number3044102
Vendor material number3044102

Basic information

Package measurements (L x W x H)50 x 50 x 7 mm
Package volume0.018 l
Package weight0.009 kg
Base uniteach
Package units1 / 50
Usage quantity
UNSPSC39131410
BrandPHOENIX
