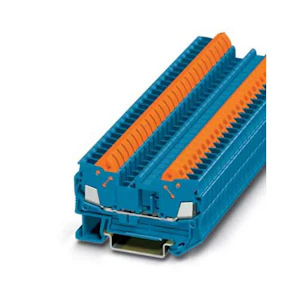

QTC 2,5 BU HURTIGKL.TILK 0,5-2,5 BLÅ

Product number
1266204
QTC 2,5 BU
Gjennomgangsklemme, nominell spenning: 800 V, nominell strøm: 24 A, tilkoblingstype: Hurtigtilkobling, antall tilkoblinger: 2, tverrsnitt:0,5 mm² - 2,5 mm², AWG: 20 - 14, bredde: 6,2 mm, farge: blå, monteringstype: NS 35/7,5, NS 35/15

Product details

Technical specifications

Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 2.5 mm²
Connectable conductor cross section solid-core0.5 ... 2.5 mm²
Connectable conductor cross section multi-wired0.5 ... 2.5 mm²
Rated current In24 A
Rated voltage800 V
Type of electrical connection 1Plug-in connection
Type of electrical connection 2Plug-in connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyOther
Operating temperature-60 ... 105 °C
Inflammability class of insulation material according to with UL94V0
Explosion-tested version 'Ex e'true
Closing plate requiredtrue

Product codes

SAPGBZ535
PLC1266204
STK1266204
GTIN/EAN4017918976040
Manufacturer part number3206429
Vendor material number3206429

Basic information

Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight0.01 kg
Base uniteach
Package units50
Usage quantity1
UNSPSC39131410
BrandPHOENIX
