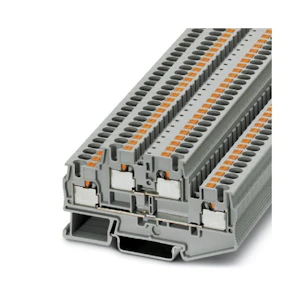

PTTB 4 rekkeklemme innstikk 0,2-4
Product number
1266410
PTTB 4
Etasjeklemme, tilkoblingstype: Innstikkstilkobling, tverrsnitt: 0,2 mm² - 6 mm², AWG: 24 - 10, bredde: 6,2 mm, farge: grå, monteringstype: NS 35/7,5, NS 35/15
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.2 ... 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.25 ... 4 mm²
Connectable conductor cross section solid-core0.2 ... 6 mm²
Connectable conductor cross section multi-wired0.2 ... 4 mm²
Rated current In28 A
Rated voltage500 V
Type of electrical connection 1Other
Type of electrical connection 2Other
Number of levels2
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyOther
Operating temperature-60 ... 105 °C
Inflammability class of insulation material according to with UL94V0
Explosion-tested version 'Ex e'true
Product codes
SAPGBZ556
PLC1266410
STK1266410
GTIN/EAN4046356482707
Manufacturer part number3211786
Vendor material number3211786
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight0.019 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39131410
BrandPHOENIX
