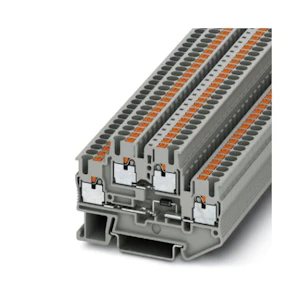

PTTB 2,5-DIO/UL-UR rekkeklemme innstikk 0,14-2,5
Product number
1264954
PTTB 2,5-DIO/UL-UR
Gjennomgangsrekkeklemme, Tilkoblingstype: Innstikkstilkobling, Tverrsnitt 0,14 mm² - 4 mm², AWG: 26 - 12, Nominell strøm: 20 A, Nominell spenning: 500 V, Lengde: 68 mm, Bredde: 5,2 mm, Farge: grå, Assembly: NS 35/7,5, NS 35/15
Product details
Technical specifications
Explosion-tested version 'Ex e'false
Connectable conductor cross section fine-strand without cable end sleeve0.14 ... 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.14 ... 2.5 mm²
Connectable conductor cross section solid-core0.14 ... 4 mm²
Connectable conductor cross section multi-wired0.14 ... 2.5 mm²
Rated current In0.5 A
Rated voltage500 V
Type of electrical connection 1Other
Type of electrical connection 2Push-in clamp connection
Number of levels2
Number of clamp positions per level2
Internally connected stagesfalse
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-60 ... 105 °C
Product codes
SAPGBZ601
PLC1264954
STK1264954
GTIN/EAN4046356433068
Manufacturer part number3211427
Vendor material number3211427
Basic information
Package measurements (L x W x H)68 x 5 x 48 mm
Package volume0.016 l
Package weight0.1 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39131410
BrandPHOENIX
