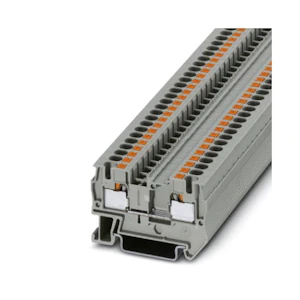

PT 4 rekkeklemme innstikk 0,2-4
Product number
1266404
PT 4
Gjennomgangsrekkeklemme, Tilkoblingstype: Innstikkstilkobling, Tverrsnitt0,2 mm² - 6 mm², AWG 24 - 10, Bredde: 6,2 mm, Farge: grå, Monteringstype: NS 35/7,5, NS 35/15
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.2 ... 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.25 ... 4 mm²
Connectable conductor cross section solid-core0.2 ... 6 mm²
Connectable conductor cross section multi-wired0.2 ... 4 mm²
Rated current In32 A
Rated voltage800 V
Type of electrical connection 1Other
Type of electrical connection 2Other
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyOther
Operating temperature-60 ... 105 °C
Inflammability class of insulation material according to with UL94V0
Explosion-tested version 'Ex e'true
Product codes
SAPGBZ931
PLC1266404
STK1266404
GTIN/EAN4046356482592
Manufacturer part number3211757
Vendor material number3211757
Basic information
Package measurements (L x W x H)45 x 35 x 10 mm
Package volume0.05 l
Package weight0.008 kg
Base uniteach
Package units1 / 50
Usage quantity–
UNSPSC39131410
BrandPHOENIX
