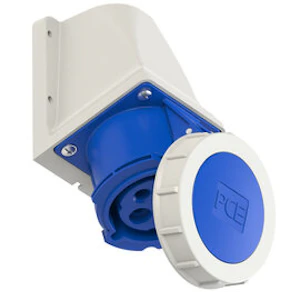

ONNLINE CEE STIKK PV 4P 32A 230V 9H IP67
Product number
1512983
ONNLINE CEE STIKKONTAKT PÅVEGG 4P 32A 230V 9H BLÅ IP67
ONNLINE CEE STIKKONTAKT PÅVEGG 4P 32A 230V 9H BLÅ IP67
Product details
Technical specifications
ModelSurface mounted (plaster)
IEC-amperage32 A
Number of poles4
Voltage according to EN 60309-2200-250 V (50+60 Hz) blue
Clock hour position9 h
Identification colourBlue
Degree of protection (IP)IP67
Connection systemScrewed terminal
Cable entryGland nut
MaterialPlastic
Contact materialCuZn
Surface treatment contactsUntreated
Type of fasteningExternal mounting
Product codes
SAPDCA127
PLC1512983
STK1512983
GTIN/EAN7070483142248
Basic information
Package measurements (L x W x H)161 x 108 x 80 mm
Package volume1.391 l
Package weight0.314 kg
Base uniteach
Package units1
Usage quantity–
BrandONNLINE
