ONEPOLE Connection kit - 6 Pole (5pcs)
Product number
1515155
ONEPOLE Connection kit - 6 Pole (5pcs)
Availability in the web store
In stock
Availability in Express stores
Minde

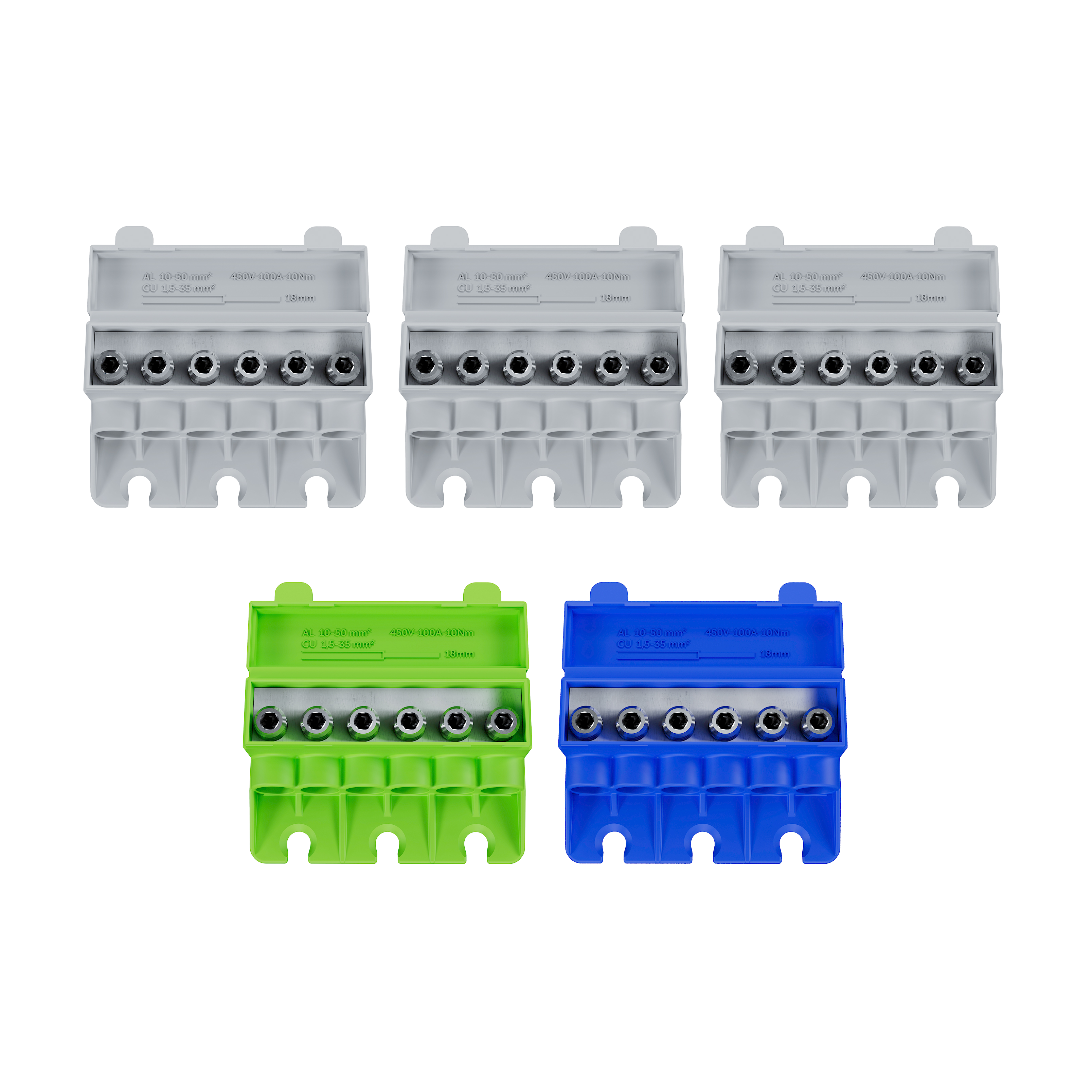

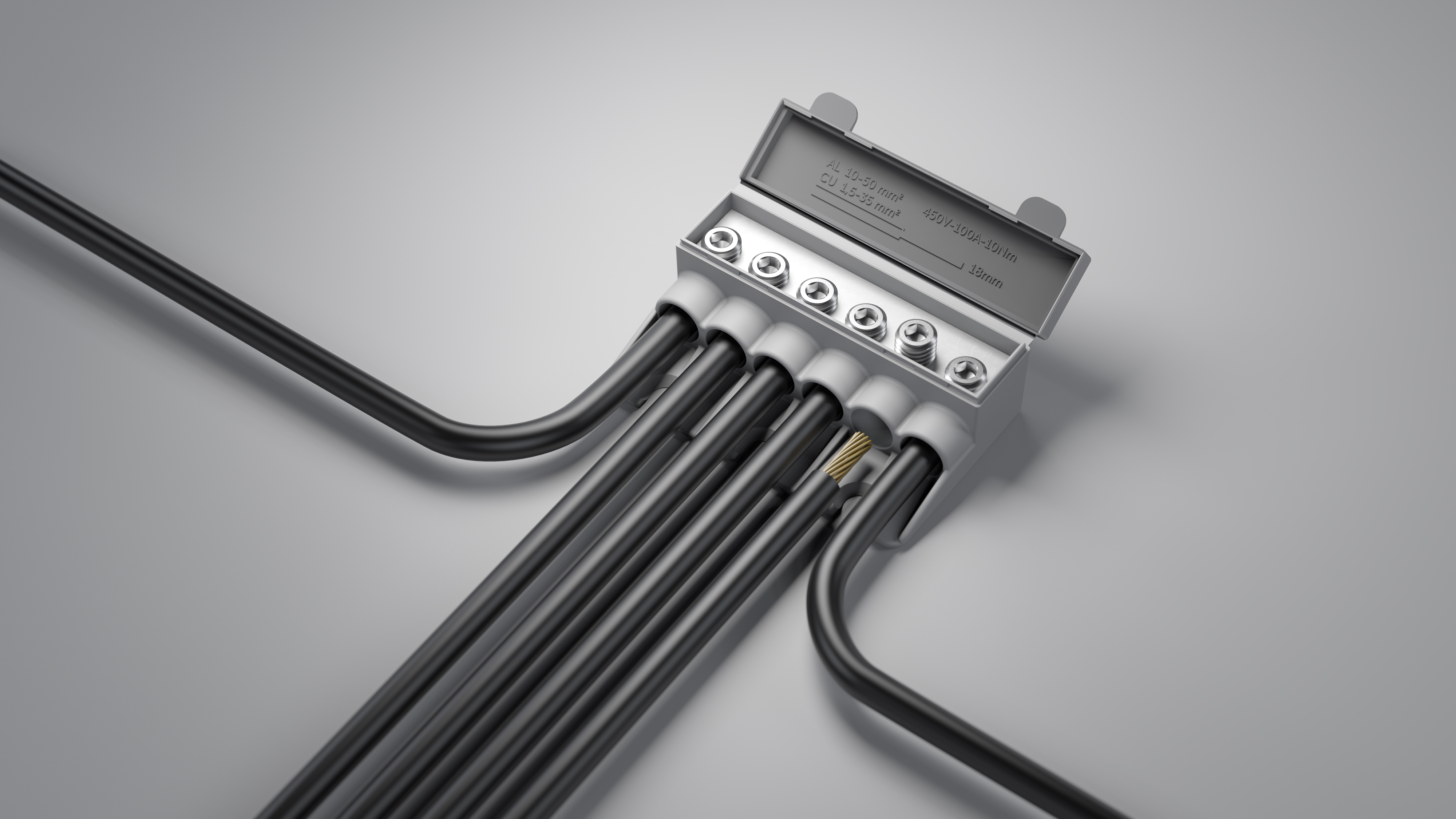

Vi presenterer vårt 6-Pole Connection Kit, designet for enkel integrasjon av flere ladere, sømløs kobling av flere søyler eller enkel installasjon av strømbrytere. Dette omfattende settet inneholder fem 6-pole kontakter og en jordkabel, og sikrer en problemfri og sikker elektrisk tilkoblingsløsning.
Product details
Technical specifications
Height54 mm
Width88 mm
Depth32 mm
Max. rated current100 A
Number of poles1
Conductor cross section flexible (fine-strand) with cable end sleeve1.5 ... 50 mm²
Conductor cross section solid (solid, stranded)1.5 ... 50 mm²
Number of clamp positions per pole6
With PE-railtrue
With N-railtrue
Product codes
SAPDER275
PLC1515155
STK1515155
GTIN/EAN7090037705200
Manufacturer part numberQ7VH5
Vendor material number1515155
Basic information
Package measurements (L x W x H)190 x 85 x 60 mm
Package volume0.97 l
Package weight0.6 kg
Base uniteach
Package units1 / 20
Usage quantity–
UNSPSC39121103
BrandONEPOLE
