OVERSPENNINGSAVLEDER V20-3P+NPE+FS
Product number
1656735

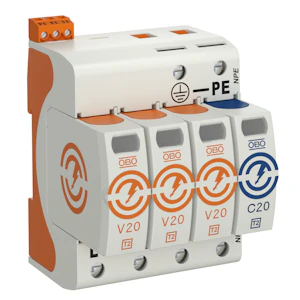

Overspennings avleder V20-3 polt + NPE + FS-280V
Overspennings avleder V20-3 polt + NPE + FS-280V.
Type 2 vern. Halogenfri utførelse. Potensial fri hjelpekontakt.
IP 20
Type 2 vern. Halogenfri utførelse. Potensial fri hjelpekontakt.
IP 20
Product details
Technical specifications
System configuration DCfalse
System configuration ITfalse
System configuration TNtrue
System configuration TN-Cfalse
System configuration TN-C-Strue
System configuration TN-Strue
System configuration TTtrue
System configuration otherfalse
Number of conductors (without earthing)3
Nominal discharge surge current (8/20)20 kA
Max. discharge surge current (8/20)40 kA
Nominal voltage AC230 V
Nominal voltage DC0 V
Max. continuous voltage AC280 V
Max. continuous voltage DC0 V
Product codes
SAPCBG700
PLC1656735
STK1656735
GTIN/EAN4012196163427
Manufacturer part number5095333
Vendor material number1656735
Basic information
Package measurements (L x W x H)102 x 75 x 82 mm
Package volume0.627 l
Package weight0.49 kg
Base uniteach
Package units1 / 18
Usage quantity–
UNSPSC39000000
BrandOBO BETTERMANN
