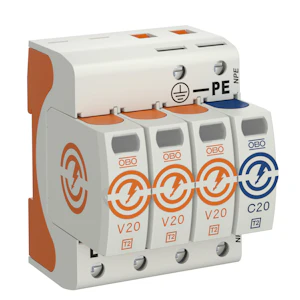

OVERSPENNINGSAVLEDER V20-3P+NPE-320V
Product number
1656741
Overspenningsavleder V20 - 3 polt + NPE - 320 Volt
Oversp.avleder V20-3p+NPE-320V
Product details
Technical specifications
System configuration DCfalse
System configuration ITfalse
System configuration TNtrue
System configuration TN-Cfalse
System configuration TN-C-Strue
System configuration TN-Strue
System configuration TTtrue
System configuration otherfalse
Number of conductors (without earthing)3
Nominal discharge surge current (8/20)20 kA
Max. discharge surge current (8/20)40 kA
Nominal voltage AC230 V
Max. continuous voltage AC320 V
Max. continuous voltage DC0 V
Voltage protection level1.4 kV
Product codes
SAPCBG707
PLC1656741
STK1656741
GTIN/EAN4012196161638
Manufacturer part number5095263
Vendor material number1656741
Basic information
Package measurements (L x W x H)102 x 75 x 82 mm
Package volume0.627 l
Package weight0.49 kg
Base uniteach
Package units1 / 18
Usage quantity–
UNSPSC32000000
BrandOBO BETTERMANN
