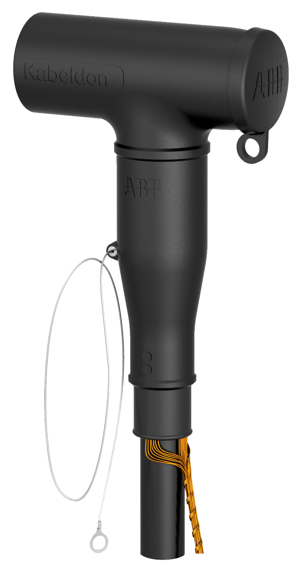

T-kontakt 50-70mm² 630A-36kV
Product number
1141632
CSE-A 36630-01, 50-70mm²
Berøringssikre kontakter med skrukabelsko for 1-/3-leder PEX-/EPR-isolert kabel. Brukes der det er krav til berøringssikker betjening. Tilpasset standard gjennomføring i.h.h.t EN 50181 - interface C. Leveres med kapasitivt målepunkt og jordleder. For innen-/utendørs bruk. Leveres komplett.
Product details
Technical specifications
Suitable for indoor usetrue
Suitable for outdoor usetrue
Rated voltage U0/U (Um)12.7/22 (24) kV
Nominal current according to EN 50180/EN 50181C (630 A)
Type of plug terminationT-connector
Connection type conductorScrew connection
Suitable for number of cores1
Screenedtrue
With cable lugtrue
Nominal cross section50 ... 70 mm²
Earthing cable length0.5 m
Width81 mm
Height285 mm
Length194 mm
Product codes
SAPDFO120
PLC1141632
STK1141632
GTIN/EAN7331980049301
Manufacturer part number6235.0287.0
Vendor material number6235.0287.0
Basic information
Package measurements (L x W x H)194 x 81 x 285 mm
Package volume4.478 l
Package weight6.1 kg
Package units1
Usage quantity–
BrandNKT
