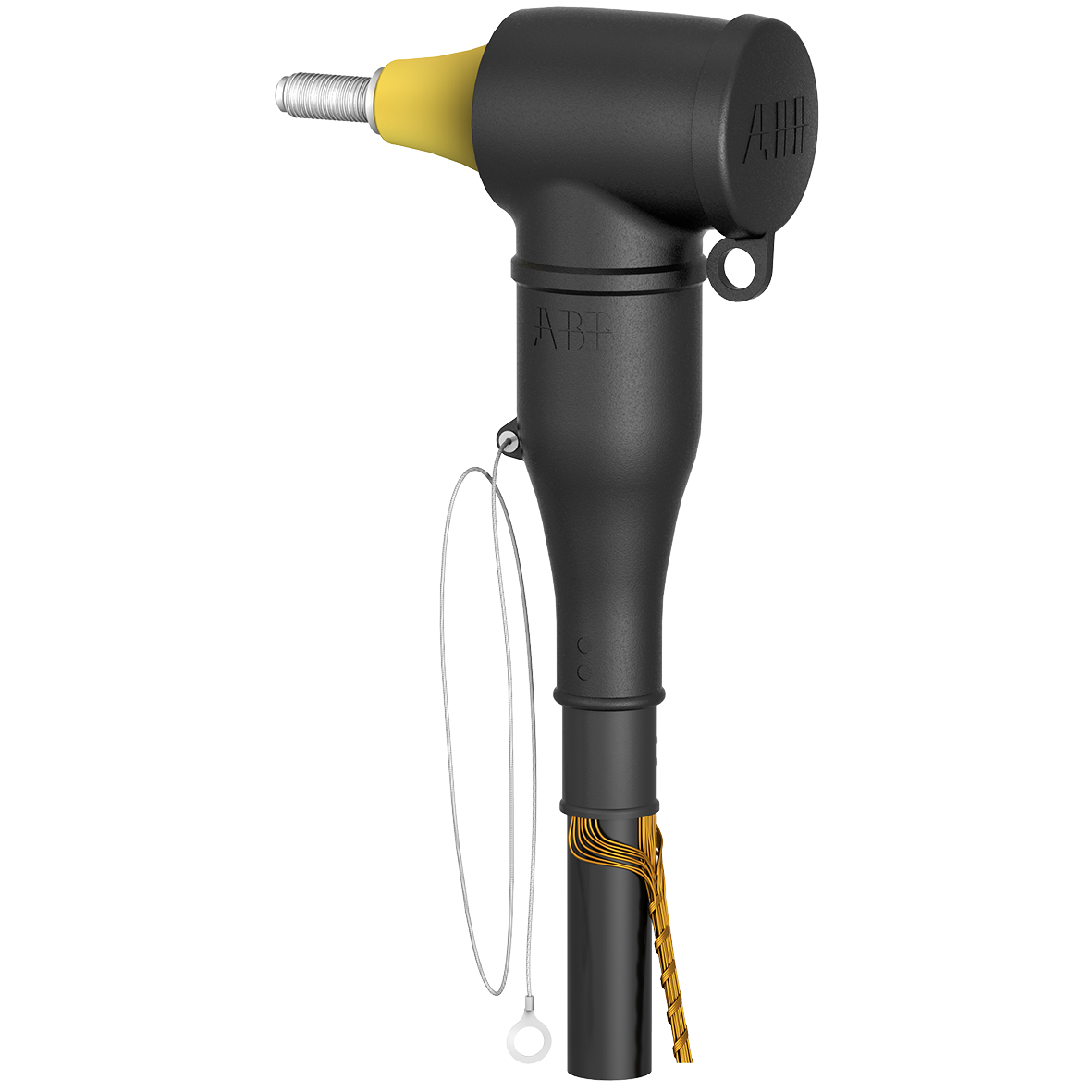

PARALLELLKONT. CSEP-A 24630-03 400-630MM², 24KV
Product number
1141675
PARALLELLKONT. CSEP-A 24630-03
Berøringssikre parallellkoblingskontakter med skrukabelsko for 1-/3-leder PEX-/EPR-isolert kabel. Tilpasset berøringssikker endavslutning CSE-A 630A 24kV. Brukes der det er krav til berøringssikker betjening. Leveres med kapasitivt målepunkt og jordleder. For innen-/utendørs bruk. Leveres komplett.
Product details
Technical specifications
Suitable for indoor usetrue
Suitable for outdoor usetrue
Rated voltage U0/U (Um)12.7/22 (24) kV
Nominal current according to EN 50180/EN 50181C (630 A)
Type of plug terminationOther
Connection type conductorScrew connection
Suitable for number of cores1
Screenedtrue
With cable lugtrue
Nominal cross section400 ... 630 mm²
Earthing cable length0.5 m
Width85 mm
Height320 mm
Length114 mm
Product codes
SAPAQV894
PLC1141675
STK1141675
GTIN/EAN7331980050680
Manufacturer part number6234.1289.0
Vendor material number6234.1289.0
Basic information
Package measurements (L x W x H)370 x 215 x 194 mm
Package volume15.433 l
Package weight9 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandNKT
