E.AVSL. SOT 242B-3 SCL 6 INNE 630/630MM², 12/24KV-SKRU
Product number
1141168

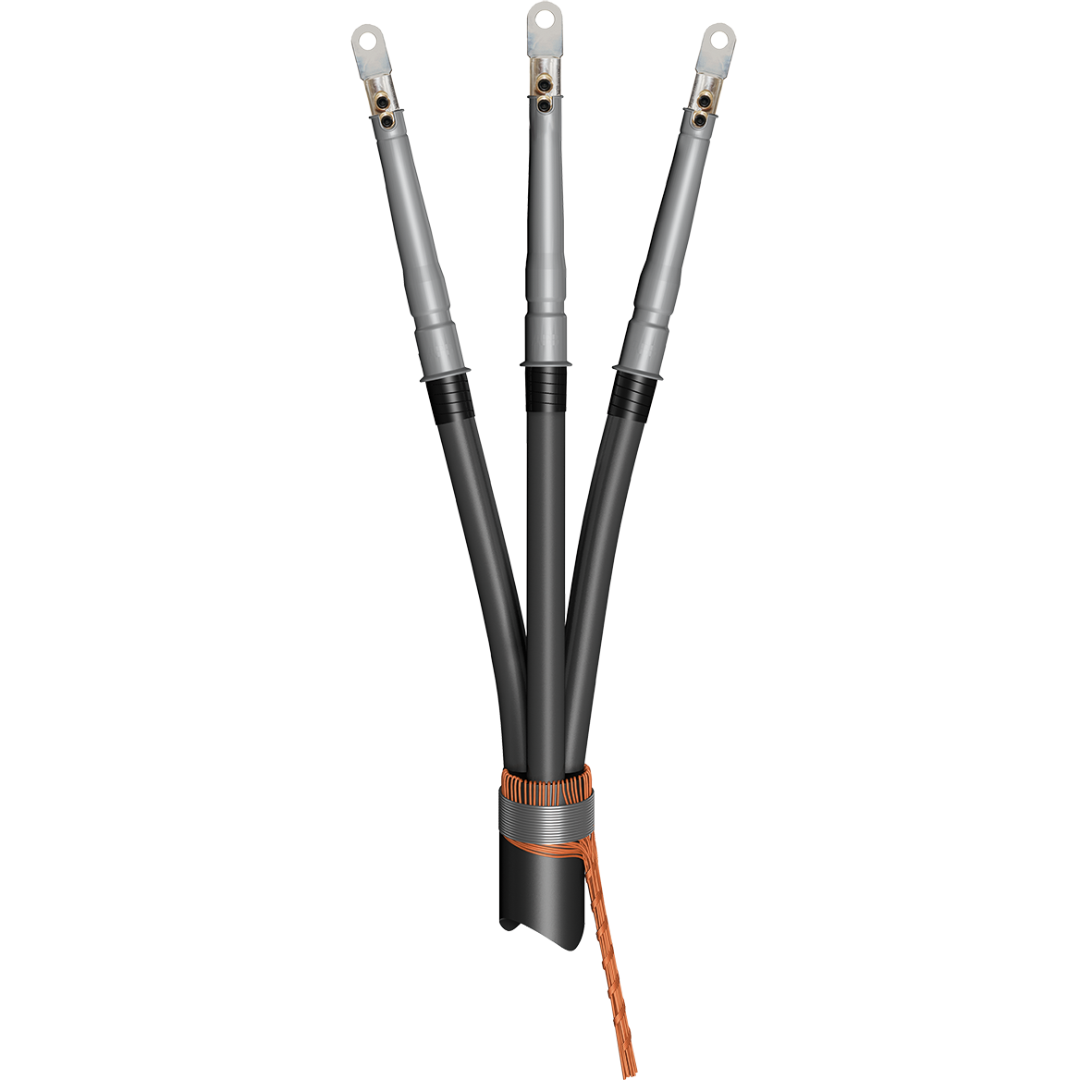

E.AVSL. SOT 242B-3 SCL 6 INNE
Kaldkrymp endeavslutning med kabelsko for 1-/3-leder PEX isolert kabel - innendørs. Laget av silikongummi. Diameter over pex-isolasjon 38-54mm. Oppfyller kravene ihht CENELEC HD 629.1.
Product details
Technical specifications
Number of cores3
Suitable for indoor usetrue
Suitable for outdoor usefalse
Type of cable terminationCold-shrink
Insulating materialPlastic
With cable lugtrue
Shape of cable lugScrew connection
Nominal cross section630 ... 630 mm²
Protective conductorfalse
Rated voltage U0/U (Um)12.7/22 (24) kV
Product codes
SAPAQV765
PLC1141168
STK1141168
GTIN/EAN7331980051069
Manufacturer part number6234.1328.0
Vendor material number6234.1328.0
Basic information
Package measurements (L x W x H)520 x 300 x 100 mm
Package volume15.6 l
Package weight0.42 kg
Base uniteach
Package units1 / 3
Usage quantity–
UNSPSC32000000
BrandNKT
