E.AVSL. SOT 241A-3 SCL 2 INNE 10-35/10-16MM², 12/24KV-SKRU

Product number
1141160
E.AVSL. SOT 241A-3 SCL 2 INNE

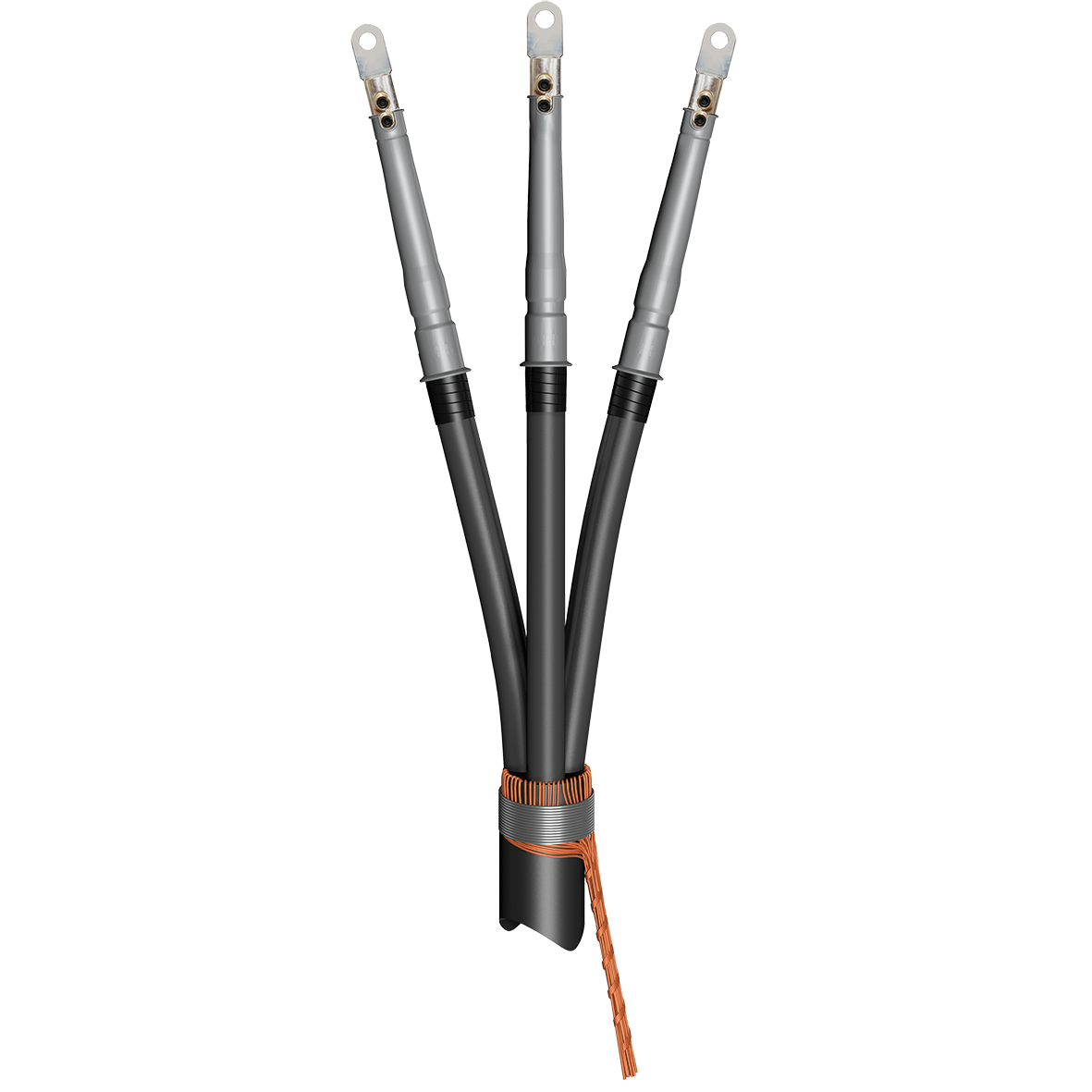

Kaldkrymp endeavslutning med kabelsko for 1-/3-leder PEX isolert kabel - innendørs. Laget av silikongummi. Diameter over pex-isolasjon 11-15mm. Oppfyller kravene ihht CENELEC HD 629.1.

Product details

Technical specifications

Number of cores3
Suitable for indoor usetrue
Suitable for outdoor usefalse
Type of cable terminationCold-shrink
Insulating materialPlastic
With cable lugtrue
Shape of cable lugScrew connection
Nominal cross section10 ... 35 mm²
Protective conductorfalse
Rated voltage U0/U (Um)12.7/22 (24) kV

Product codes

SAPAQV761
PLC1141160
STK1141160
GTIN/EAN7331980051021
Manufacturer part number6234.1324.0
Vendor material number6234.1324.0

Basic information

Package measurements (L x W x H)520 x 300 x 100 mm
Package volume15.6 l
Package weight0.42 kg
Base uniteach
Package units1 / 3
Usage quantity
BrandNKT
