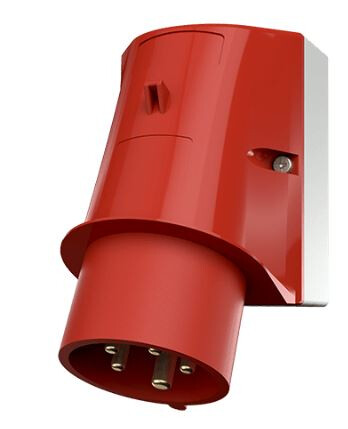

WALL MOUNTED INLET 342 16A5P 6H400V - IP44
Product number
1503423
342,16A5P 6H400V Veggmontert apparat Inntak IP44
16A5P 6H400V Veggmontert apparat Inntak IP44
Product details
Technical specifications
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Voltage according to EN 60309-2400 V (50+60 Hz) red
Rated voltage399 ... 400 V
Rated frequency50 ... 60 Hz
Number of poles5
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP44
Connection systemScrewed terminal
Construction typeSurface mounted device plug
Phase inverterfalse
Insert directionRight-angled
MaterialPlastic
Product codes
SAPAAY989
PLC1503423
STK1503423
GTIN/EAN4015394002468
Manufacturer part number342
Vendor material number1503423
Basic information
Package measurements (L x W x H)135 x 108 x 75 mm
Package volume1.094 l
Package weight0.25 kg
Base uniteach
Package units1 / 10
Usage quantity–
UNSPSC39121529
BrandMENNEKES
