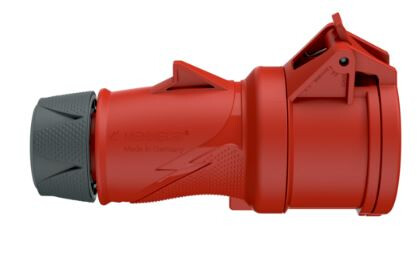

EXTENTION S-OUTL POWERTOP XTRA 14510 - 16A5P6H400V IP54
Product number
1507213
14510,Skjøtekontakt PowerTOP Xtra 16A5p 6h400V IP54
Skjøtekontakt PowerTOP Xtra 16A5p 6h400V IP54
X-Contact

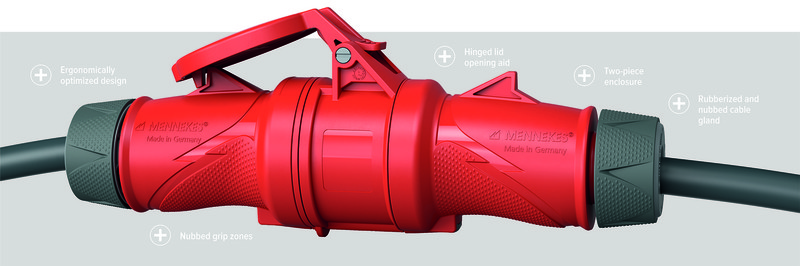

Ergonomisk hus
Gummiert skruforbindelseg
Skruteknologi
X-Contact
Ergonomisk hus
Gummiert skruforbindelseg
Skruteknologi
Product details
Technical specifications
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)20 A
Number of poles5
Voltage according to EN 60309-2400 V (50+60 Hz) red
Clock hour position6 h
Identification colourRed
RAL-number3013
Degree of protection (IP)IP54
Connection systemScrewed terminal
Insert directionStraight
Cable entryGland nut
MaterialPlastic
Contact materialCuZn
Surface treatment contactsUntreated
Military modelfalse
Product codes
SAPCIR504
PLC1507213
STK1507213
GTIN/EAN4015394289357
Manufacturer part number14510
Vendor material number1507213
Basic information
Package measurements (L x W x H)180 x 100 x 75 mm
Package volume1.35 l
Package weight0.28 kg
Base uniteach
Package units1 / 10
Usage quantity–
UNSPSC39121308
BrandMENNEKES
