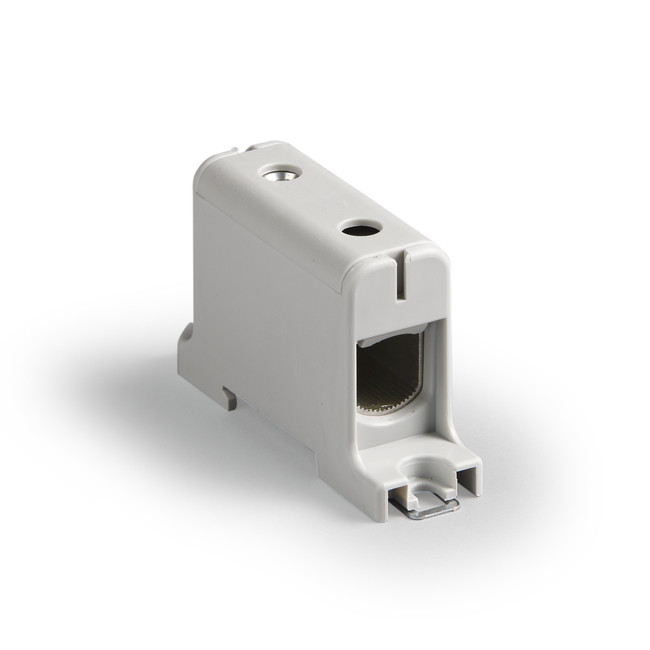

UNIVERSAL TERMINAL BLOCK KE62 16-95mm2, GRAY
Product number
1261828
1-pole, grey, Al/Cu 16-95 mm²
Ensto Clampo Pro is a comprehensive universal terminal series for Al/Cu conductors of 2.5 – 240 mm².
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve16 ... 70 mm²
Connectable conductor cross section fine-strand with cable end sleeve16 ... 70 mm²
Connectable conductor cross section multi-wired16 ... 95 mm²
Rated current In220 A
Rated voltage800 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5 ... 80 °C
Inflammability class of insulation material according to with UL94V2
Explosion-tested version 'Ex e'false
Closing plate requiredfalse
Product codes
SAPABP936
PLC1261828
STK1261828
GTIN/EAN6418677191855
Manufacturer part numberKE62
Vendor material number1261828
Basic information
Package measurements (L x W x H)84 x 49 x 25 mm
Package volume0.103 l
Package weight0.074 kg
Base uniteach
Package units1 / 3 / 30
Usage quantity–
UNSPSC39121410
BrandLEGRAND NORGE
