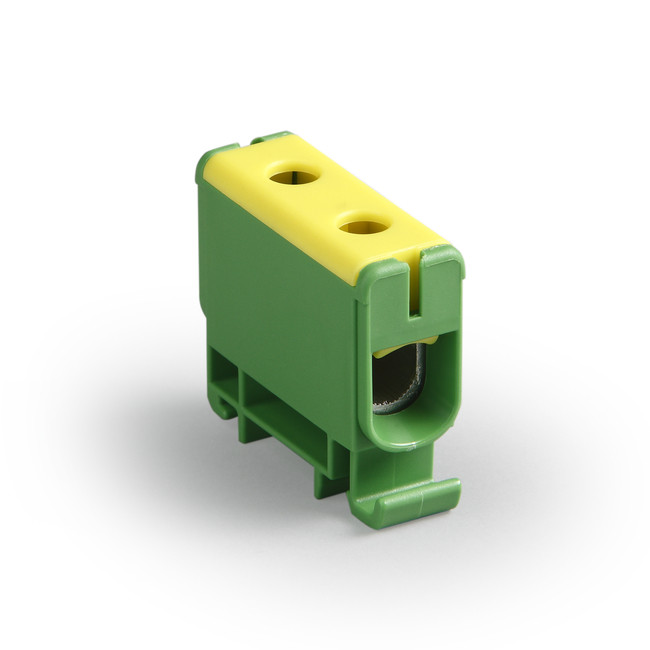

UNIVERSAL TERMINAL BLOCK KE61.3 2.5-50MM2, YEGR

Product number
1261822
1-pole, yellow/green, Al 6-50 mm², Cu 2.5-50 mm²
Ensto Clampo Pro is a comprehensive universal terminal series for Al/Cu conductors of 2.5 – 240 mm².

Product details

Technical specifications

Connectable conductor cross section fine-strand without cable end sleeve2.5 ... 35 mm²
Connectable conductor cross section fine-strand with cable end sleeve2.5 ... 35 mm²
Connectable conductor cross section multi-wired2.5 ... 50 mm²
Rated current In160 A
Rated voltage800 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5 ... 80 °C
Inflammability class of insulation material according to with UL94V2
Explosion-tested version 'Ex e'false
Closing plate requiredfalse

Product codes

SAPABP934
PLC1261822
STK1261822
GTIN/EAN6418677191848
Manufacturer part numberKE61.3
Vendor material number1261822

Basic information

Package measurements (L x W x H)44 x 50 x 19 mm
Package volume0.042 l
Package weight0.03 kg
Base uniteach
Package units1 / 3 / 30
Usage quantity
UNSPSC39121410
BrandLEGRAND NORGE
