UNIVERSAL TAPPING BLOCK KE68.2 2X(35-150MM2)

Product number
1261849

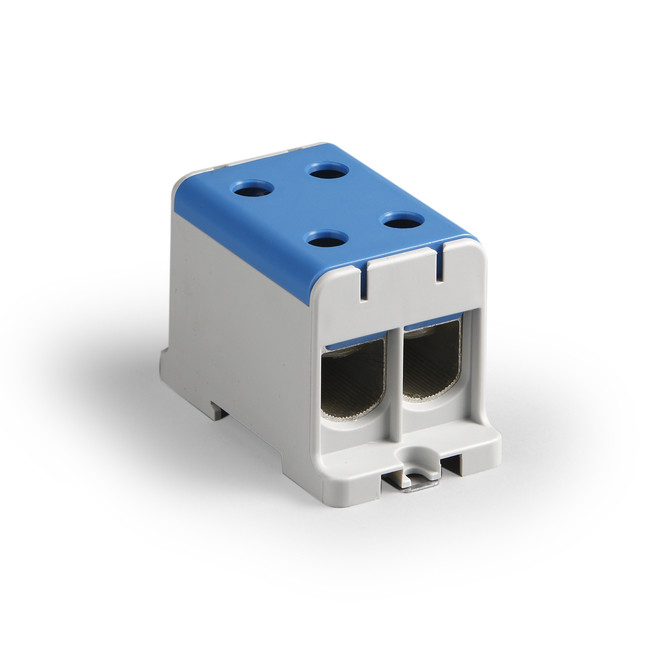

Tapping block, blue, Al/Cu 35-150 mm²
Ensto Clampo Pro is a comprehensive universal terminal series for Al/Cu conductors of 2.5 – 240 mm².

Product details

Technical specifications

Connectable conductor cross section fine-strand without cable end sleeve35 ... 120 mm²
Connectable conductor cross section fine-strand with cable end sleeve35 ... 120 mm²
Connectable conductor cross section multi-wired35 ... 150 mm²
Rated current In290 A
Rated voltage800 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level4
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5 ... 80 °C
Inflammability class of insulation material according to with UL94V2
Explosion-tested version 'Ex e'false
ColourBlue

Product codes

SAPABP948
PLC1261849
STK1261849
GTIN/EAN6418677192012
Manufacturer part numberKE68.2
Vendor material number1261849

Basic information

Package measurements (L x W x H)95 x 50 x 59 mm
Package volume0.28 l
Package weight0.215 kg
Base uniteach
Package units1 / 3 / 30
Usage quantity
UNSPSC39121421
BrandLEGRAND NORGE
