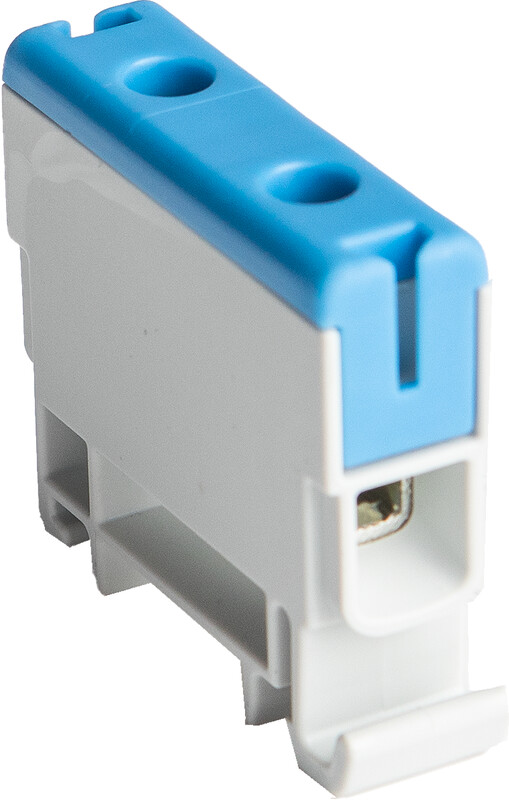

TERMINAL BLOCK CLAMPO PRO BLUE, AL/CU 16 mm2
Product number
1203682
No product description available.
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve10 ... 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve1.5 ... 10 mm²
Connectable conductor cross section solid-core1.5 ... 16 mm²
Connectable conductor cross section multi-wired1.5 ... 16 mm²
Rated current In82 A
Rated voltage800 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5 ... 80 °C
Inflammability class of insulation material according to with UL94V2
Explosion-tested version 'Ex e'false
Product codes
SAPDAY781
PLC1203682
STK1203682
GTIN/EAN6438100500900
Manufacturer part numberKE60.2
Vendor material numberKE60.2
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.2 l
Package weight0.028 kg
Base uniteach
Package units1 / 30 / 3150
Usage quantity–
UNSPSC39121421
BrandLEGRAND NORGE
