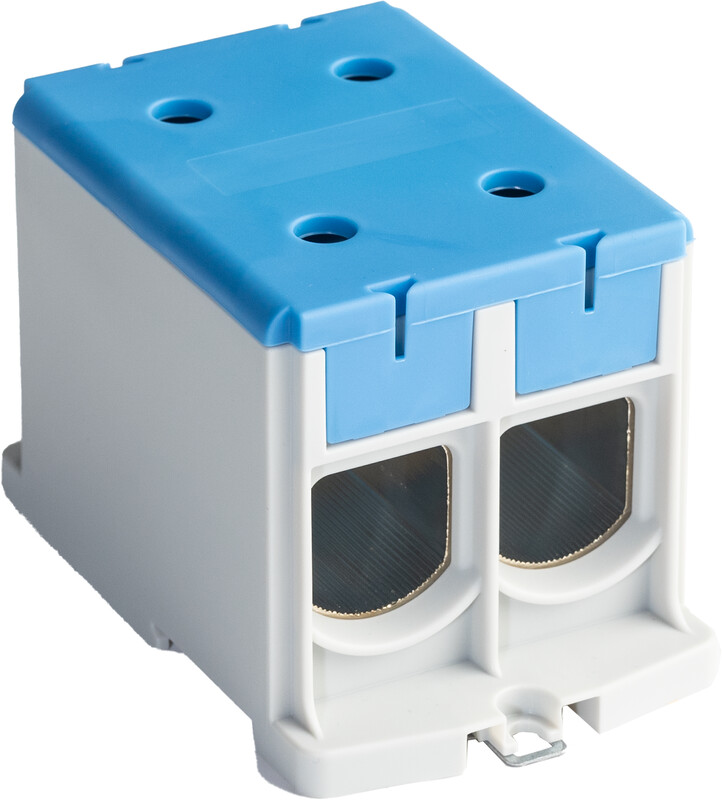

TAPPING CONNECTOR CLAMPO PRO BLUE, AL/CU 95-300 mm2
Product number
1203688
No product description available.
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve95 ... 240 mm²
Connectable conductor cross section fine-strand with cable end sleeve95 ... 240 mm²
Connectable conductor cross section multi-wired95 ... 300 mm²
Rated current In1040 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level4
Mounting methodDirect mounting
Material insulation bodyThermoplastic
Operating temperature-5 ... 80 °C
Inflammability class of insulation material according to with UL94V2
Explosion-tested version 'Ex e'false
ColourBlue
Product codes
SAPDAY787
PLC1203688
STK1203688
GTIN/EAN6438100508326
Manufacturer part numberKE70.2
Vendor material numberKE70.2
Basic information
Package measurements (L x W x H)130 x 81 x 78 mm
Package volume0.985 l
Package weight0.727 kg
Base uniteach
Package units1 / 30 / 960
Usage quantity–
UNSPSC39121421
BrandLEGRAND NORGE
