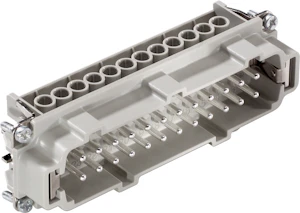

KIT 24pin HAN plugg side M25 EPIC KIT H-BE 24 SS TS M25
Product number
1531391
EPIC KIT H-BE 24 SS TS M25
KIT 24pin HAN plugg side M25
Product details
Technical specifications
Contact typePin
Width57.8 mm
Height61 mm
Depth120 mm
Number of poles24
Number of plug-in contact rows2
Rated current In16 A
Ambient temperature-40 ... 125 °C
Rated voltage500 V
Rated surge voltage6 kV
Over voltage categoryIII
Pollution degree3
Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 ... 2.5 mm²
Connectable conductor cross section solid-core0.5 ... 2.5 mm²
Product codes
SAPHGD686
PLC1531391
STK1531391
GTIN/EAN4044774419688
Manufacturer part number75009651
Vendor material number75009651
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.001 l
Package weight0.434 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandLAPP KABEL
