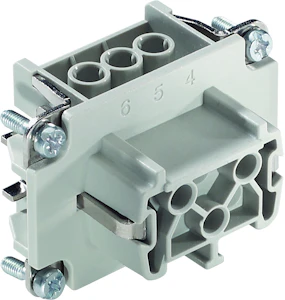

HUN INNSATS 6+J H-BE 6 B
Product number
1531369
H-BE 6 B
HUN INNSATS 6+J
Product details
Technical specifications
Number of power contacts6
Number of control contacts0
Contact insert without contactsfalse
Contact typeBus
Number of poles6
Diameter plug-in contact2.5 mm
Material connector insertThermoplastic
Rated current In16 A
Ambient temperature-40 ... 125 °C
Rated voltage500 V
Rated surge voltage6 kV
Over voltage categoryIII
Pollution degree3
Type of electric connectionScrew connection
With wire protectiontrue
Product codes
SAPCDU812
PLC1531369
STK1531369
GTIN/EAN4044773054842
Manufacturer part number10191000
Vendor material number10191000
Basic information
Package measurements (L x W x H)185 x 27 x 27 mm
Package volume0.135 l
Package weight0.048 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121400
BrandLAPP KABEL
