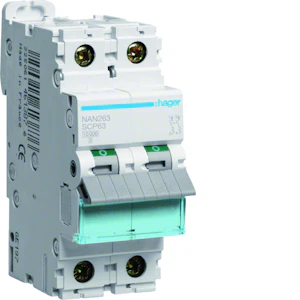

HOVEDVERN SCP 2X63A 10KA NAN263 HAGER
Product number
1659204
Automatsikring 2x63A, scp-kurve, 10kA
Norm: EN 60-898 Selektiv inntaksautomat: Montasje: På DIN-skinne i fordelingsskap Utførelse: Modulær Merkestrøm: 25A - 63A Merkespenning: 230/400V AC Bryteevne:10 kA Antall moduler: 2 - 4 Antall poler:2, 3, 4 Visuell stillingsidikator.Tilleggsutstyr for automatsikringer kan benyttes.
Product details
Technical specifications
Built-in depth70 mm
Release characteristicOther
Number of poles (total)2
Number of protected poles2
Rated current63 A
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6000 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V7.5 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V30 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
Frequency50 ... 50 Hz
Current limiting class3
Product codes
SAPGDC017
PLC1659204
STK1659204
GTIN/EAN3250614611070
Manufacturer part numberNAN263
Vendor material number1659204
Basic information
Package measurements (L x W x H)102 x 81 x 42 mm
Package volume0.347 l
Package weight0.3 kg
Base uniteach
Package units1 / 60
Usage quantity–
UNSPSC32000000
BrandHAGER
