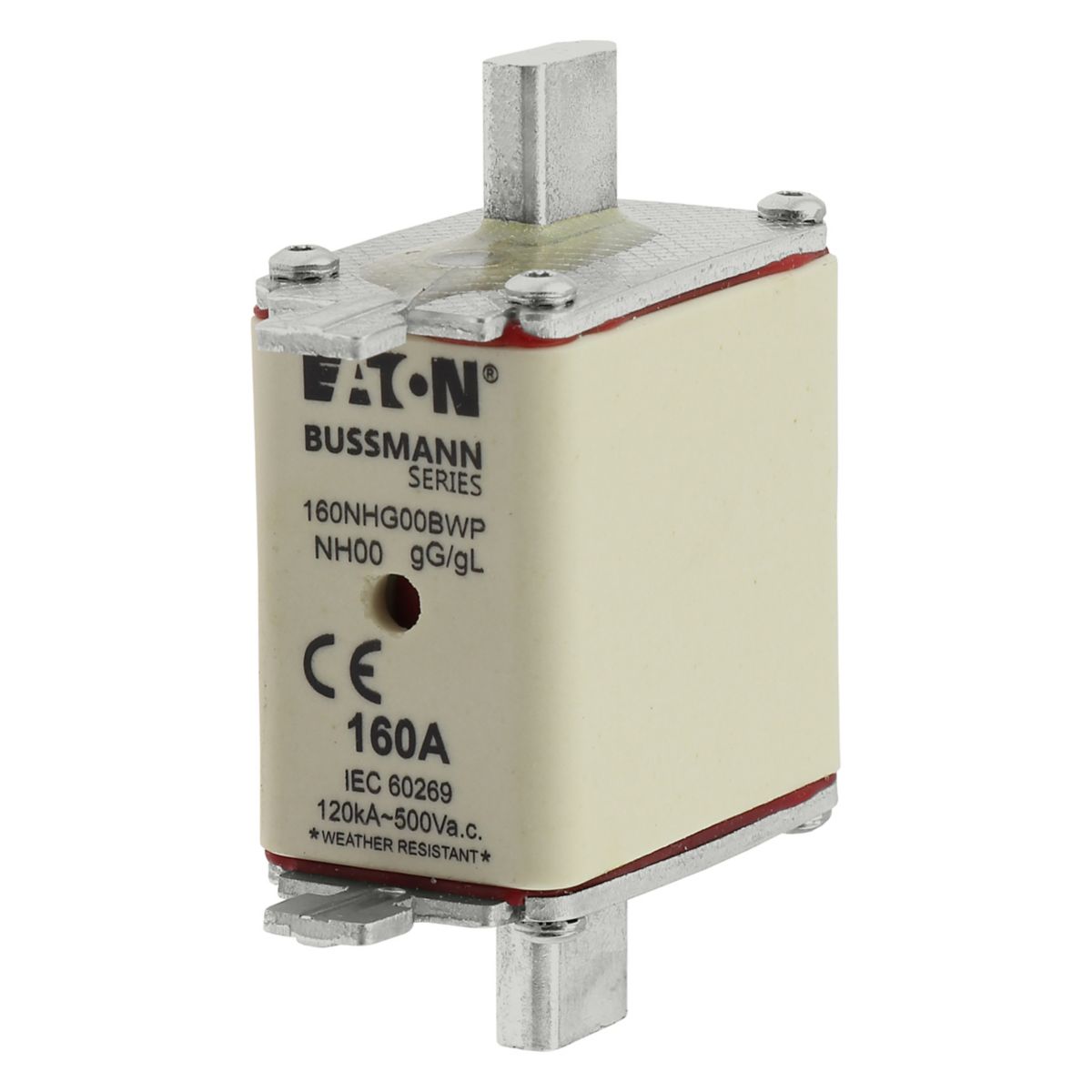

VÆRBESTANDIG NH SMELTESIKRING LV, 160 A, AC 500 V, NH00

Product number
1601141
Smeltesikring, LV, 160 A, AC 500 V, NH00, gL/gG, IEC, Værbestandig
Sikring, Smeltesikring, lavspenning, 160 A, AC 500 V, NH00, værbestandig, gL/gG, IEC, dobbel indikator, firkantet kropp med kniv kontakter, IEC 60269-2 Sikring system A, DIN 43620, VDE 0636-2. Tåleevne 120 kA, Valgfritt tilbehør sikringsholder SD00-D and SD00-S

Product details

Technical specifications

Fuse construction type according to IEC 60269NH00
Voltage typeAC
Rated current160 A
Rated voltage AC500 V
Rated switching capacity AC120
Utilization categorygG (cable protection/equipment protection)
Type of fuse status indicatorCombination fuse status indicator
Insulated metal gripping lugs (IMGL)false
Power loss at rated current10 W
Rated voltage500 V
Rated switching capacity120
Construction sizeNH00

Product codes

SAPCLG854
PLC1601141
STK1601141
GTIN/EAN5027590529112
Manufacturer part number160NHG00BWP
Vendor material number1601141

Basic information

Package measurements (L x W x H)21 x 26.667 x 21 mm
Package volume0.012 l
Package weight0.197 kg
Base uniteach
Package units1 / 3
Usage quantity
UNSPSC32000000
BrandEATON
