New

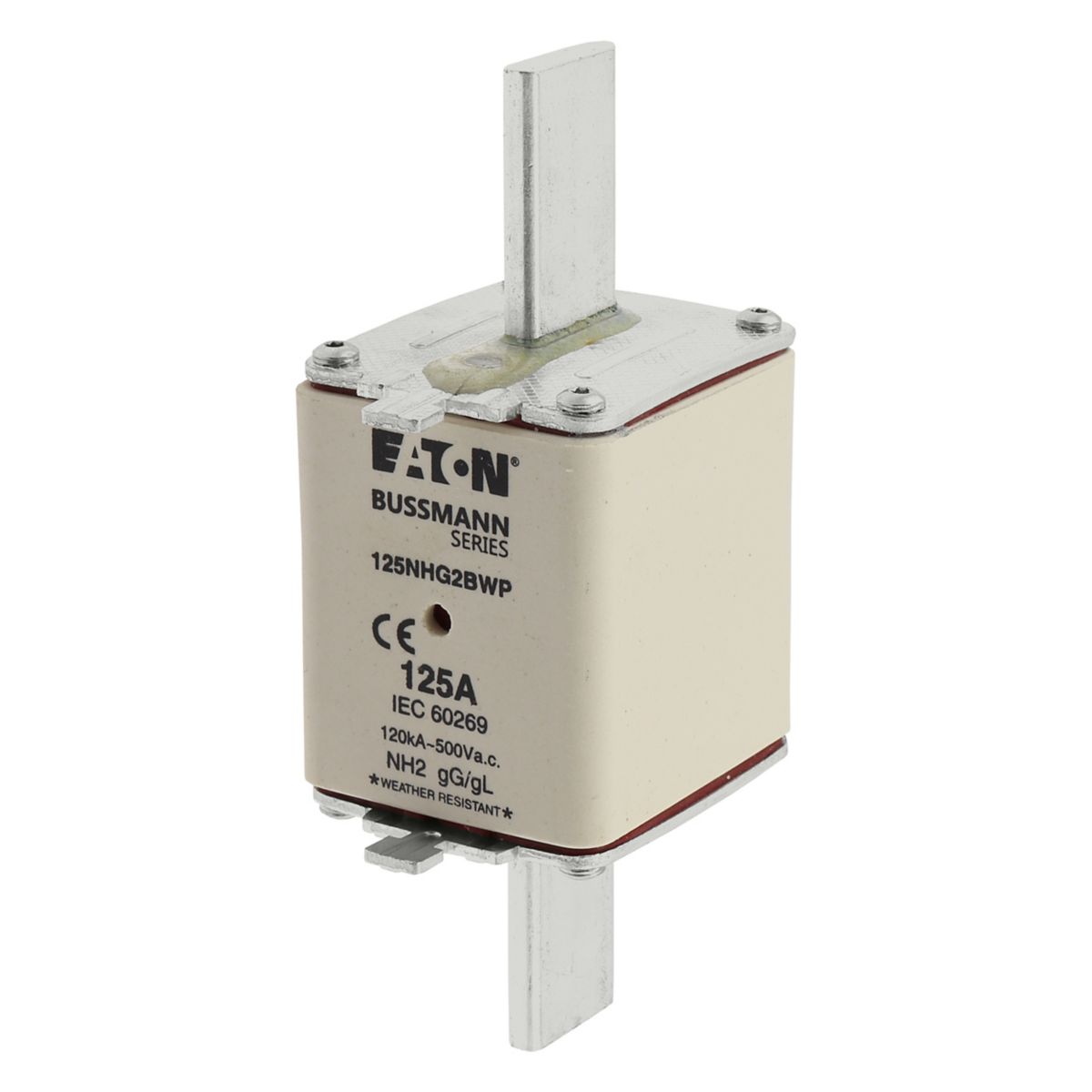

VÆRBESTANDIG NH SIKRING SMELTESIKR 125A 500V NH2 GL/GG
Product number
1600399
Smeltesikring, LV, 125 A, AC 500 V, NH2, gL/gG, IEC, Værbestandig
Sikring, Smeltesikring, lavspenning, 125 A, AC 500 V, NH2, værbestandig, gL/gG, IEC, dobbel indikator, firkantet kropp med kniv kontakter, IEC 60269-2 Sikring system A, DIN 43620, VDE 0636-2, Tåleevne 120 kA, Valgfritt tilbehør sikringsholder SD2-D og SD2-S
Product details
Technical specifications
Fuse construction type according to IEC 60269NH2
Voltage typeAC
Rated current125 A
Rated voltage AC500 V
Rated switching capacity AC120 kA
Utilization categorygL/gG (cable protection/equipment protection)
Type of fuse status indicatorCombination fuse status indicator
Insulated metal gripping lugs (IMGL)false
Power loss at rated current13 W
Rated voltage500 V
Rated switching capacity120 kA
Construction sizeNH2
Product codes
SAPCXW702
PLC1600399
STK1600399
GTIN/EAN5027590529242
Manufacturer part number125NHG2BWP
Vendor material number125NHG2BWP
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.001 l
Package weight0.001 kg
Base uniteach
Package units1
Usage quantity–
BrandEATON
