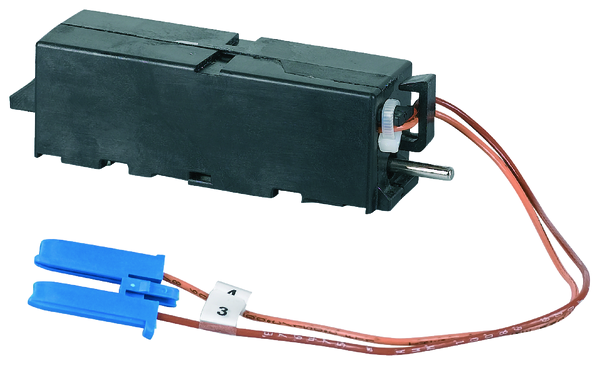

Undervoltage release IZMX-UVR230AD-1
Product number
4398507
220-240 VAC/DC
Accessories, Undervoltage release, Cannot be combined with a second shunt release., Retrofitting kit, Maximum operating frequency Actuations/minute 3, Limited to 3/min due to the high pick-up current for 35 ms., Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 208 - 240 V AC 50/60 Hz, 208 - 250 V DC V, Operating range x US 0,85 - 1,1 Factor, max. holding current In 0.028 A, max. pick-up current (35ms) In 4.27 A, max. continuous power AC/DC 5 VA/W, max. pull-in power (35ms) AC/DC 910 VA/W, Circuit-breaker total switching time @ US=100% 37 ms, For use with IZMX16..., IZMX40..., INX16..., INX40...
Product details
Technical specifications
Rated control supply voltage AC 50 Hz208 ... 240 V
Rated control supply voltage AC 60 Hz208 ... 240 V
Rated control supply voltage DC220 ... 250 V
Voltage type for actuatingAC/DC
Type of electric connectionFlat plug-in connection
Number of contacts as normally open contact0
Number of contacts as normally closed contact0
Number of contacts as change-over contact0
Delayedfalse
Suitable for power circuit breakertrue
Suitable for off-load switchtrue
Suitable for motor safety switchtrue
Suitable for overload relaytrue
Product codes
SAPCGQ262
PLC4398507
STK4398507
GTIN/EAN4015081783403
Manufacturer part number184162
Vendor material number4398507
Basic information
Package measurements (L x W x H)150 x 100 x 100 mm
Package volume1.5 l
Package weight0.095 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandEATON
