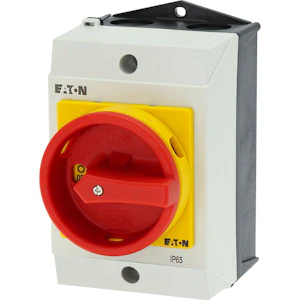

Sikkerhetsbryter T0-3-15159/I1/SVB
Product number
1457835
Sikkerhetsbryter 3 pol + 2 N/O + 1 N/C 20 A kapslet IP65
Sikkerhetsbryter, Produkt rekkevidde Sikkerhetsbryter, vedlikeholdsbryter reperasjonsbryter, gruppereferanse: T0, Stop funksjon Nødstopp, Med rødt håndtak på gul låsering 3 pol, Beskyttelsesgrad IP65, Design: kapslet Betjeningsvinkel: 90 °, Motor type AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Strøm: Iu = 20 A, 3 kontakter, Standarder IEC/EN 60947, VDE 0660, IEC/EN 60204, Sikkerhetsbryter i henhold til IEC/EN 60947-3
Product details
Technical specifications
Version as main switchtrue
Version as maintenance-/service switchtrue
Version as safety switchfalse
Version as emergency stop installationtrue
Version as reversing switchfalse
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage690 ... 690 V
Rated permanent current Iu20 A
Rated permanent current at AC-23, 400 V13.3 A
Rated permanent current at AC-21, 400 V20 A
Rated operation power at AC-3, 400 V5.5 kW
Rated short-time withstand current lcw0.32 kA
Rated operation power at AC-23, 400 V5.5 kW
Switching power at 400 V5.5 kW
Product codes
SAPGAD484
PLC1457835
STK1457835
GTIN/EAN4015082226466
Manufacturer part number222646
Vendor material number1457835
Basic information
Package measurements (L x W x H)137 x 80 x 130 mm
Package volume1.425 l
Package weight0.3 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121501
BrandEATON
