New

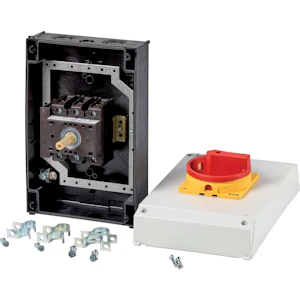

SIKKERHETSBRYTER, 3-POL, 63 A
Product number
1400422
P3-63/I4/MBS/SVB/HI11
Sikkerhetsbryter, 3-pol + 1NO/1NC, 63 A,Nødbetjeningsfunksjon Rød/Gult Grep, låsbar i 0(AV) posisjon, Påvegg montasje IP65,med EMC skjerming
Product details
Technical specifications
Version as main switchtrue
Version as maintenance-/service switchtrue
Version as safety switchfalse
Version as emergency stop installationtrue
Version as reversing switchfalse
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage690 ... 690 V
Rated permanent current Iu63 A
Rated permanent current at AC-23, 400 V63 A
Rated permanent current at AC-21, 400 V63 A
Rated operation power at AC-3, 400 V30 kW
Rated short-time withstand current lcw1.26 kA
Rated operation power at AC-23, 400 V30 kW
Switching power at 400 V30 kW
Product codes
SAPCWA099
PLC1400422
STK1400422
GTIN/EAN4015081773497
Manufacturer part number182423
Vendor material number182423
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.001 l
Package weight0.001 kg
Base uniteach
Package units1
Usage quantity–
BrandEATON
