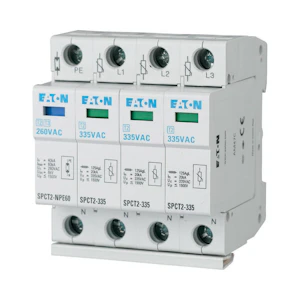

Overspenningsvern kl.2 385 3p+NPE
Product number
1664197
SPCT2-385-3+NPE
Overspenningsvern 385 VAC 3+NPE
Til bruk i IT-nett uten distribuert PE for å dekke krav i NEK med ekstra brannbeskyttelse ved nettfrekvente overspenninger
Til bruk i IT-nett uten distribuert PE for å dekke krav i NEK med ekstra brannbeskyttelse ved nettfrekvente overspenninger
Product details
Technical specifications
System configuration DCfalse
System configuration ITtrue
System configuration TNtrue
System configuration TN-Cfalse
System configuration TN-C-Strue
System configuration TN-Strue
System configuration TTtrue
System configuration othertrue
Number of conductors (without earthing)3
Nominal discharge surge current (8/20)20 kA
Max. discharge surge current (8/20)40 kA
Nominal voltage AC385 V
Nominal voltage DC0 V
Max. continuous voltage AC385 V
Max. continuous voltage DC0 V
Product codes
SAPCCY190
PLC1664197
STK1664197
GTIN/EAN4015081641130
Manufacturer part number167624
Vendor material number1664197
Basic information
Package measurements (L x W x H)67 x 70 x 85 mm
Package volume0.399 l
Package weight0.438 kg
Base uniteach
Package units1 / 30 / 1200
Usage quantity–
UNSPSC32000000
BrandEATON
