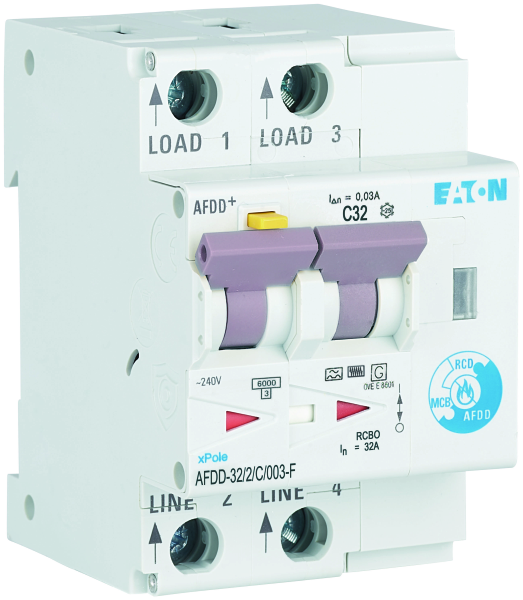

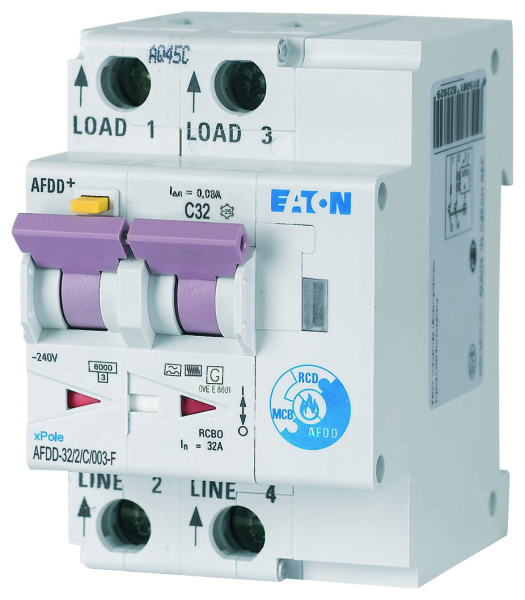

Lysbuevern 32A 2p C 30mA F
Product number
1601013
AFDD-32/2/C/003-F
Jordfeilautomat med lysbuevern. AFDD detekterer og kobler ut ved serielysbue, parallellysbue og lysbue til jord. OL = I2 1,3 spesielt tilpasset boliginstallasjoner. LI/A = tidsforsinket 10 ms. OBS! Tre moduler bredde. Samleskinne elnr: 1601457 (EVG-2PHAS/4AFDD)
Product details
Technical specifications
Number of poles2
Rated voltage230 V
Rated current32 A
Rated fault current0.03 A
Leakage current typeOther
Current limiting class3
Rated short-circuit breaking capacity according to EN 610096 kA
Rated short-circuit breaking capacity according to IEC 60947-20 kA
Frequency50 Hz
Release characteristicC
Concurrently switching neutral conductorfalse
Over voltage category3
Pollution degree2
Width in number of modular spacings3
Built-in depth67 mm
Product codes
SAPCWA910
PLC1601013
STK1601013
GTIN/EAN4015081823369
Manufacturer part number187287
Vendor material number1601013
Basic information
Package measurements (L x W x H)85 x 80 x 50 mm
Package volume0.34 l
Package weight0.32 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC1601452
BrandEATON
