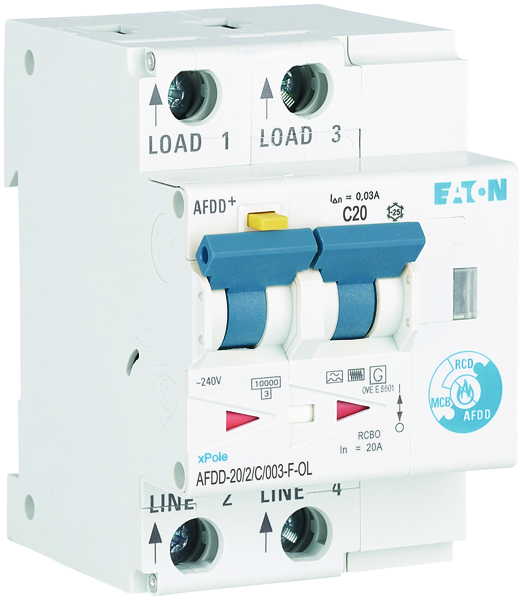

Lysbuevern 20A 2p C 30mA F OL
Product number
1601021
AFDD-20/2/C/003-F-OL
Jordfeilautomat med lysbuevern. AFDD detekterer og kobler ut ved serielysbue, parallellysbue og lysbue til jord. OL = I2 1,3 spesielt tilpasset boliginstallasjoner. LI/A = tidsforsinket 10 ms. OBS! Tre moduler bredde. Samleskinne elnr: 1601457 (EVG-2PHAS/4AFDD)
Product details
Technical specifications
Number of poles2
Rated voltage230 V
Rated current20 A
Rated fault current0.03 A
Leakage current typeOther
Current limiting class3
Rated short-circuit breaking capacity according to EN 6100910 kA
Rated short-circuit breaking capacity according to IEC 60947-20 kA
Frequency50 Hz
Release characteristicC
Concurrently switching neutral conductorfalse
Over voltage category3
Pollution degree2
Width in number of modular spacings3
Built-in depth67 mm
Product codes
SAPCYB170
PLC1601021
STK1601021
GTIN/EAN9010238802230
Manufacturer part numberMB-300182
Vendor material number1601021
Basic information
Package measurements (L x W x H)85 x 75 x 50 mm
Package volume0.319 l
Package weight0.32 kg
Base uniteach
Package units1 / 40
Usage quantity–
UNSPSC1601442
BrandEATON
