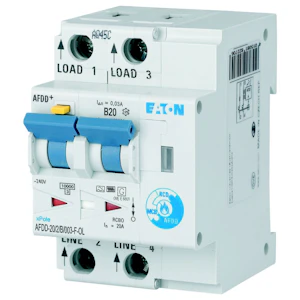

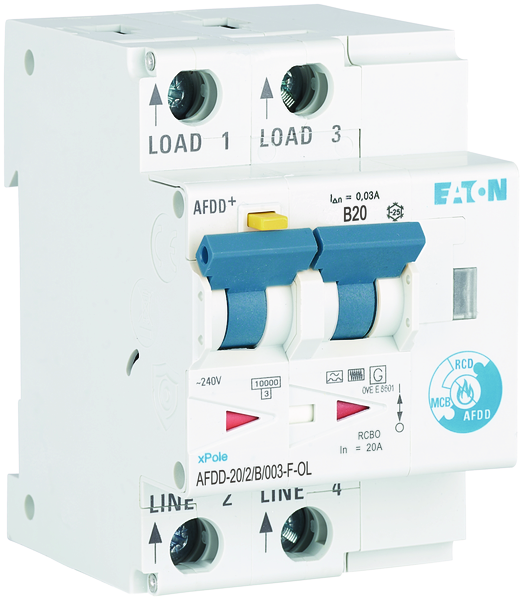

Lysbuevern 20A 2p B 30mA F OL
Product number
1601025
AFDD-20/2/B/003-F-OL
Jordfeilautomat med lysbuevern. AFDD detekterer og kobler ut ved serielysbue, parallellysbue og lysbue til jord. OL = I2 1,3 spesielt tilpasset boliginstallasjoner. LI/A = tidsforsinket 10 ms. OBS! Tre moduler bredde. Samleskinne elnr: 1601457 (EVG-2PHAS/4AFDD)
Product details
Technical specifications
Number of poles2
Rated voltage230 V
Rated current20 A
Rated fault current0.03 A
Leakage current typeOther
Current limiting class3
Rated short-circuit breaking capacity according to EN 6100910 kA
Rated short-circuit breaking capacity according to IEC 60947-20 kA
Frequency50 Hz
Release characteristicB
Concurrently switching neutral conductorfalse
Over voltage category3
Pollution degree2
Width in number of modular spacings3
Built-in depth67 mm
Product codes
SAPCYB174
PLC1601025
STK1601025
GTIN/EAN9010238802285
Manufacturer part numberMB-300187
Vendor material number1601025
Basic information
Package measurements (L x W x H)80 x 52.5 x 73 mm
Package volume0.307 l
Package weight0.277 kg
Base uniteach
Package units1 / 40
Usage quantity–
UNSPSC1601440
BrandEATON
