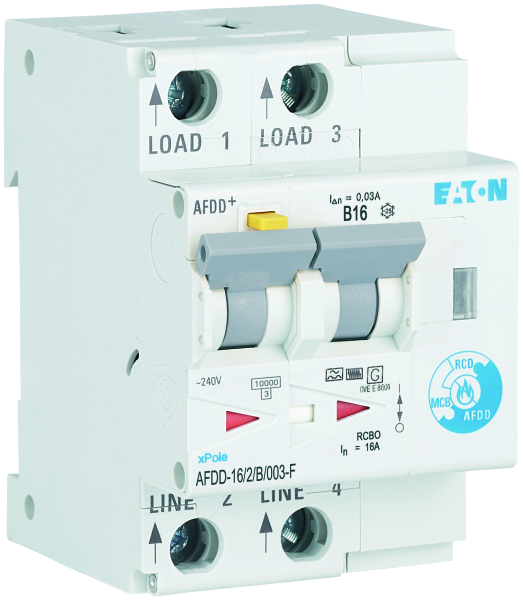

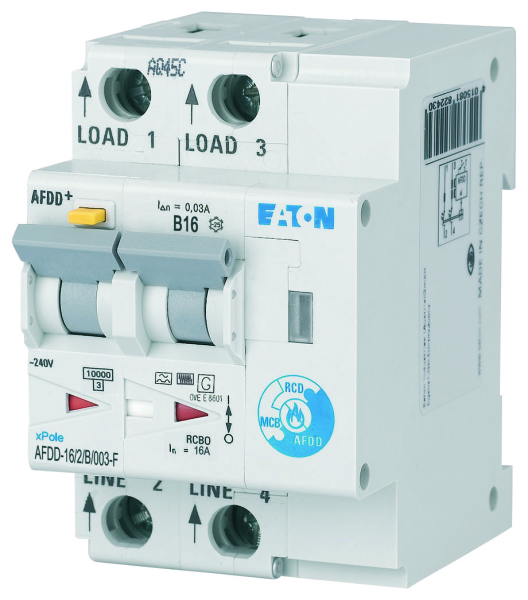

Lysbuevern 16A 2p B 30mA F
Product number
1601010
AFDD-16/2/B/003-F
Jordfeilautomat med lysbuevern. AFDD detekterer og kobler ut ved serielysbue, parallellysbue og lysbue til jord. OL = I2 1,3 spesielt tilpasset boliginstallasjoner. LI/A = tidsforsinket 10 ms. OBS! Tre moduler bredde. Samleskinne elnr: 1601457 (EVG-2PHAS/4AFDD)
Product details
Technical specifications
Number of poles2
Rated voltage230 V
Rated current16 A
Rated fault current0.03 A
Leakage current typeA
Current limiting class3
Rated short-circuit breaking capacity according to EN 6100910 kA
Rated short-circuit breaking capacity according to IEC 60947-20 kA
Frequency50 Hz
Release characteristicB
Concurrently switching neutral conductorfalse
Over voltage category3
Pollution degree2
Width in number of modular spacings3
Built-in depth67 mm
Product codes
SAPCWA903
PLC1601010
STK1601010
GTIN/EAN4015081823123
Manufacturer part number187263
Vendor material number1601010
Basic information
Package measurements (L x W x H)85 x 80 x 50 mm
Package volume0.34 l
Package weight0.32 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC1601435
BrandEATON
