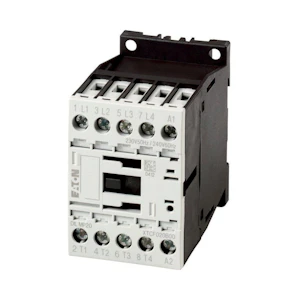

KONTAKTOR 4POL 230V50HZ 240V60 DILMP20(230V50HZ,240V60HZ)

Product number
4130327
Kontaktor, 4 polet, 22 A, 230 V 50 Hz, 240 V 60 Hz, AC betjent
Kontaktor 230-240 VAC

Product details

Technical specifications

Rated control supply voltage AC 50 Hz230 ... 230 V
Rated control supply voltage AC 60 Hz240 ... 240 V
Rated control supply voltage DC0 ... 0 V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact4
Type of electrical connection of main circuitScrew connection
Operating voltage AC 50 Hz24 ... 690 V
Operating voltage AC 60 Hz24 ... 690 V
Rated operation current Ie at AC-1, 400 V22 A
Rated operation current Ie at AC-3, 400 V12 A
Rated operation power at AC-3, 400 V5.5 kW
Rated operation current Ie at AC-4, 400 V10 A
Rated operation power at AC-4, 400 V4.5 kW
Rated operation power NEMA0 kW

Product codes

SAPGCZ914
PLC4130327
STK4130327
GTIN/EAN4015082769703
Manufacturer part number276970
Vendor material number4130327

Basic information

Package measurements (L x W x H)84 x 69 x 52 mm
Package volume0.301 l
Package weight0.26 kg
Base uniteach
Package units1 / 1
Usage quantity1
UNSPSC39121529
BrandEATON
