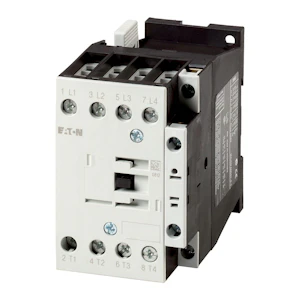

Kontaktor 4p. 230V 50Hz DILMP32-10(230V50HZ,240V60HZ)
Product number
4130404
Kontaktor, 4 poler, 32 A, 1 N/O, 230 V 50 Hz, 240 V 60 Hz
DILMP....
4 Pol Kontaktor
DILMP20 IP20
DILMP32-45 IP00
IEC/EN 60947, VDE 0660, UL, CSA.
Samme tilbehør som 3p. DILM
Dempeledd intrigert i DC-kontaktor
Belastning AC1=32A
Motorbelastning AC3=18A
Moment hoved / hjelpekl.=3Nm / 1,2Nm
HxBxD = 58x85x98
DILMP32
4 Pol Kontaktor
DILMP20 IP20
DILMP32-45 IP00
IEC/EN 60947, VDE 0660, UL, CSA.
Samme tilbehør som 3p. DILM
Dempeledd intrigert i DC-kontaktor
Belastning AC1=32A
Motorbelastning AC3=18A
Moment hoved / hjelpekl.=3Nm / 1,2Nm
HxBxD = 58x85x98
DILMP32
Product details
Technical specifications
Rated control supply voltage AC 50 Hz230 ... 230 V
Rated control supply voltage AC 60 Hz240 ... 240 V
Rated control supply voltage DC0 ... 0 V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact4
Type of electrical connection of main circuitScrew connection
Operating voltage AC 50 Hz24 ... 690 V
Operating voltage AC 60 Hz24 ... 690 V
Rated operation current Ie at AC-1, 400 V32 A
Rated operation current Ie at AC-3, 400 V18 A
Rated operation power at AC-3, 400 V7.5 kW
Rated operation current Ie at AC-4, 400 V15 A
Rated operation power at AC-4, 400 V7 kW
Rated operation power NEMA11 kW
Product codes
SAPGDB366
PLC4130404
STK4130404
GTIN/EAN4015081093694
Manufacturer part number109797
Vendor material number4130404
Basic information
Package measurements (L x W x H)111 x 99 x 72 mm
Package volume0.791 l
Package weight0.54 kg
Base uniteach
Package units1 / 3 / 720
Usage quantity1
UNSPSC39121529
BrandEATON
