DRAKA C6 F-U/UTP OUTD 4P T500 1014166-00500DP DRAKA
Product number
1082639

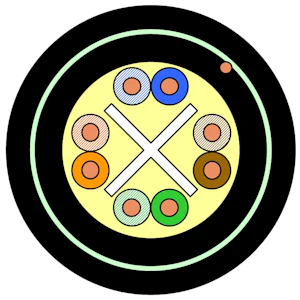

DRAKA SuperCat Category 6 F-U/UTP 4P 0.56mm utendørs, SORT
Skjermet Horisontalkabel for Informasjonsteknologi / Felles kablingssystemer, utendørs, vannblokkert. Ekstra AL-skjerm og PE-kappe .
Product details
Technical specifications
Conductor surfaceBare
Diameter conductor0.58 mm
Nominal cross section conductor0.26 mm²
Conductor categoryClass 1 = solid
Number of cores8
Number of stranding elements4
Stranding elementPairs
Material core insulationPolyolefin
Specification core insulationPolyethylene (PE)
Core identificationColour
Screen over stranding elementNone
StrandingBundle
Screen over strandingFoil
Longitudinal water blocking cabletrue
Radial water blocking cabletrue
Product codes
SAPGDH256
PLC1082639
STK1082639
GTIN/EAN8717511329613
Manufacturer part number60016068
Vendor material number1082639
Basic information
Package measurements (L x W x H)0 x 0 x 10 mm
Package volume0 l
Package weight0.114 kg
Base unitm
Package units1
Usage quantity1
UNSPSC26121616
BrandDRAKA
